空気/油潤滑給油システム LMG.01 series単一ライン最少量スプレー
お気に入りに追加する
商品比較に追加する
特徴
- 滑剤
- 空気/油
- タイプ
- 最少量, 単一ライン, スプレー
- 応用
- 工作機械用, ドライ加工用, 複合工作機械用, 特殊機械用, スピンドル用, ドリル用マシン, フライス盤用機械, 金属加工用
- 作動
- 空気圧式
- その他の特徴
- 自動, プログレッシブ, 空気圧式, 空気
詳細
The Air-Oil Lubri-Cooler LMG.01 unit, is a pneumatically operated device designed for the lubrication and cooling of the tool and workpiece on Chip removal machines and Deformation machine tools.
- The device adopts the principle of Minimal Lubrication, also known as MQL. In fact, it carries out its function by supplying compressed air and minimal (to the point of imperceptible) quantities of lubricating fluid.
- All OilJet products are optimized for the use of popular Water-in-oil emulsions, as well as specific Neat lubricating oils.

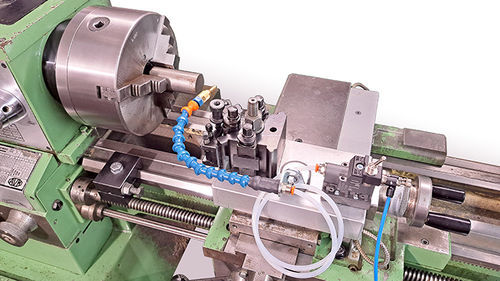

THE IMAGES REPRESENT SOME EXAMPLES OF INSTALLATION: LMG.01B26 item ON A DRILL PRESS - LMG.01C28 item ON A METAL LATHE
- The fluid is sucked from the reservoir and mixed with compressed air inside the Dispensing nozzle component, which provides immediate responsiveness to even the slightest adjustments.
- The LMG.01 model is produced in three versions (type A - B - C), diversified by specialization, standard equipment, configuration of the control unit and length of the Flex-tube.
- The wide versatility of the LMG.01 series, is enriched by several optional accessories which further increase its fields of use.
- The device adopts the principle of Minimal Lubrication, also known as MQL. In fact, it carries out its function by supplying compressed air and minimal (to the point of imperceptible) quantities of lubricating fluid.
- All OilJet products are optimized for the use of popular Water-in-oil emulsions, as well as specific Neat lubricating oils.
THE IMAGES REPRESENT SOME EXAMPLES OF INSTALLATION: LMG.01B26 item ON A DRILL PRESS - LMG.01C28 item ON A METAL LATHE
- The fluid is sucked from the reservoir and mixed with compressed air inside the Dispensing nozzle component, which provides immediate responsiveness to even the slightest adjustments.
- The LMG.01 model is produced in three versions (type A - B - C), diversified by specialization, standard equipment, configuration of the control unit and length of the Flex-tube.
- The wide versatility of the LMG.01 series, is enriched by several optional accessories which further increase its fields of use.
ビデオ
カタログ
Lubri-Cooler LMG.01
2 ページ
