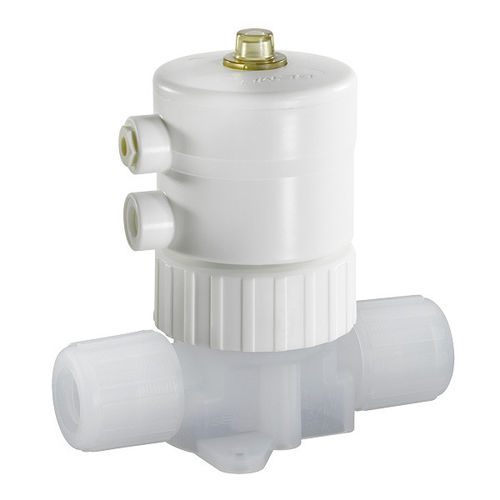

ダイヤフラム式バルブ C60 CleanStar空気操作化学製品化学
お気に入りに追加する
商品比較に追加する
特徴
- タイプ
- ダイヤフラム式
- 作動
- 空気操作
- 使用流体
- 化学製品
- 応用
- 産業用, 化学, OEM
- 素材$
- プラスチック製, PTFE, EPDM, PP, ポリフッ化ビニリデン製 （PVDF）, PFA製
- 形状
- 2方向2位置
- その他の特徴
- 標準, 高流量, 高純度液体
- 呼び径
最少: 4 mm
(0.157 in)最大: 50 mm
(1.969 in)- 圧力
最少: 0 bar
(0 psi)最大: 6 bar
(87 psi)- 温度
最少: -10 °C
(14 °F)最大: 150 °C
(302 °F)
詳細
Valve with high chemical resistance for the strictest purity standards
The ultra pure 2/2-way diaphragm valve GEMÜ C60 CleanStar® has a plastic piston actuator and is pneumatically operated. A stroke limiter (not with AG 4) and an optical position indicator are integrated as standard. All media wetted parts are produced from PFA or PTFE (HPW version). For the HPS version, there is a choice of valve bodies made of PP-R, natural or PVDF. This High Purity version of the CleanStar® series complies with the strictest purity standards and boasts high chemical resistance. It can also be used with high media temperatures. As such, it is often used at the supply and distribution level in semiconductor factories.
The ultra pure 2/2-way diaphragm valve GEMÜ C60 CleanStar® has a plastic piston actuator and is pneumatically operated. A stroke limiter (not with AG 4) and an optical position indicator are integrated as standard. All media wetted parts are produced from PFA or PTFE (HPW version). For the HPS version, there is a choice of valve bodies made of PP-R, natural or PVDF. This High Purity version of the CleanStar® series complies with the strictest purity standards and boasts high chemical resistance. It can also be used with high media temperatures. As such, it is often used at the supply and distribution level in semiconductor factories.
- All wetted parts made of PFA or PTFE
- High flow rate with low-stress media channelling
- Optional flow direction
- Long service life based on test results and field experience
- Ideally suited for corrosive media
- Optional version with ECTFE union nut and/or with PFA-coated compression springs
- Also available as T valve
- Clean room production, fulfils SEMI F57
