グローブバルブ 549

電動式制御ねじ式

Valve with premium actuator for high performance and long service life

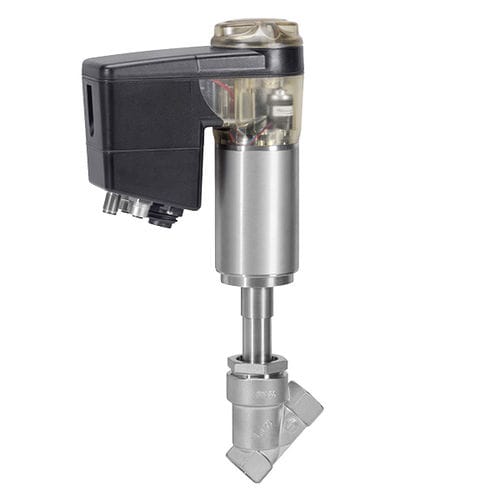

The GEMÜ 549 eSyDrive is an electrically operated 2/2-way angle seat globe valve with a hollow shaft electric actuator. The eSyDrive hollow shaft actuator can be operated as On/Off or with integrated positioner or process controller. The valve spindle is sealed by a self-adjusting gland packing. This provides a low-maintenance and reliable valve spindle seal even after an extended period of operation. A wiper ring fitted in front of the gland packing protects the seal against contamination and damage. An integral optical and electrical position indicator is standard.

CIP/SIP capable

• Linear or modified equal-percentage control characteristics
• Open/Close function, positioner and process controller
• Actuation force and actuating speed variably adjustable
• Operable via web interface eSy-Web and Modbus TCP
• Extensive functions, such as position feedback, diagnostic functions and opening and closing stroke limitation
