- 空圧・油圧機器
- バルブ
- 電動空気圧式バルブポジショナー
- GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG

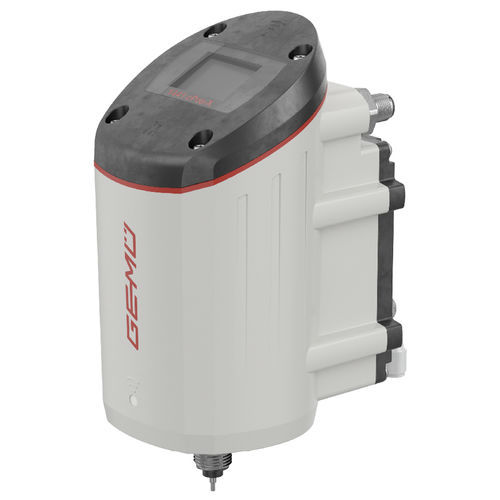

スマ－トバルブポジショナー 1441 cPos-X電動空気圧式リニア1/4回転タイプ
お気に入りに追加する
商品比較に追加する
特徴
- タイプ
- 電動空気圧式
- 動作
- リニア, 1/4回転タイプ
- 設定
- 複動式, 単動式
- 保護クラス
- IP65
- その他の特徴
- ボール弁用, デジタル, スマ－ト
- 圧力
最少: 1.5 bar
(21.8 psi)最大: 7 bar
(101.5 psi)- 常温
最少: -10 °C
(14 °F)最大: 60 °C
(140 °F)- 回転角度
最少: 0 grad
最大: 90 grad
詳細
Two-wire positioner for explosion-proof areas
The GEMÜ 1441 cPos-X is an intelligent, digital electro-pneumatic positioner in 2-wire technology used to control pneumatically operated process valves. It can be combined with single acting or double acting linear actuators or quarter turn actuators. This means that it can be used, among other things, for diaphragm, globe and diaphragm globe valves as well as for ball valves and butterfly valves, for instance. The positioner has a robust housing with a covered LCD display for status information. The positioner can be operated remotely using a mobile device in order to configure settings and to view detailed information.
2-wire-connection technology
Quick commissioning using well-balanced preconfiguration
HART communication available upon request
Fail safe and Fail freeze safety function available
BLE communication for remote access and configuration
Almost no air consumption when idle
The GEMÜ 1441 cPos-X is an intelligent, digital electro-pneumatic positioner in 2-wire technology used to control pneumatically operated process valves. It can be combined with single acting or double acting linear actuators or quarter turn actuators. This means that it can be used, among other things, for diaphragm, globe and diaphragm globe valves as well as for ball valves and butterfly valves, for instance. The positioner has a robust housing with a covered LCD display for status information. The positioner can be operated remotely using a mobile device in order to configure settings and to view detailed information.
2-wire-connection technology
Quick commissioning using well-balanced preconfiguration
HART communication available upon request
Fail safe and Fail freeze safety function available
BLE communication for remote access and configuration
Almost no air consumption when idle
カタログ
この商品のカタログはありません。
GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KGの全カタログを見る見本市
この販売者が参加する展示会
GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KGのその他の関連商品
Positioner and process controller
