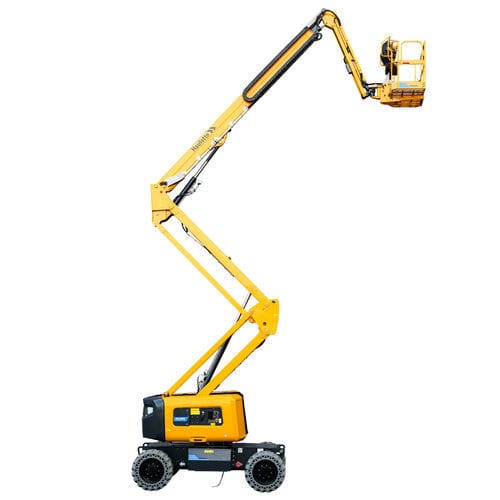

自走式多関節型高所作業車 HA20 E電動式不整地排気ゼロ
お気に入りに追加する
商品比較に追加する
特徴
- タイプ
- 自走式
- モータータイプ
- 電動式
- 応用
- 不整地
- その他の特徴
- 排気ゼロ
- 最大地上高
20.5 m
(67'03" )- 荷重
最大: 350 kg
(771.6 lb)最少: 250 kg
(551.2 lb)
詳細
The HA20 E is part of the PULSEO series by Haulotte, offering 100% electric machines that eliminate exhaust and greenhouse gas emissions while providing performance equivalent to diesel machines. This electric rough-terrain boom delivers high performance without the noise and maintenance constraints of diesel engines!
- Enhance your productivity
- Extend your duty cycles
- Operate anytime, anywhere with zero emissions
- Work safely
Technical Specifications:
- Working height: 20.5 m
- Platform height: 18.5 m
- Maximum horizontal outreach: 11.9 m
- Up and over clearance: 8.5 m
- Maximum load capacity: 250 kg - option 350 kg
- Platform size: 1.80 x 0.8 m
- Overall length: 8.6 m
- Overall width: 2.43 m
- Stowed height: 2.47 m
- Total weight: 9,790 kg
- Battery: 72 V - 390 Ah (C20)
- Turntable rotation: 355° non-continuous
- Wheelbase: 2.5 m
- Ground clearance: 30 cm
- Maximum wind speed: 45 km/h
- Gradeability: 40%
