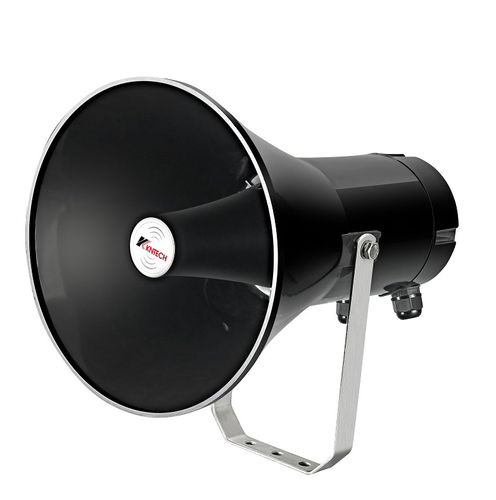

ブラケット付き拡声器 KNSIPLB-Ex15危険な場所用防水耐候性
お気に入りに追加する
商品比較に追加する
特徴
- 設置
- ブラケット付き
- その他の特徴
- 耐候性, 産業用, サービス業, 磁気, 強力, PoE, 密封, SIP, 防水, ホーン, IP66, プラスチック製船体, 防爆, 高効率, 増幅, アドレシング可能, 危険な場所用, 堅牢, ATEX, 高信頼性
- 騒音レベル
最大: 105 dB
最少: 92 dB
- 許容出力
15 W
詳細
Product Overview
SIP Ex Horn Speaker is an explosion-proof IP network horn speaker designed for clear, long-range speech for remote speaking in video surveillance and public address applications. It integrates with Voice over IP (VoIP) telephone systems using SIP (Session Initiation Protocol) and supports Power over Ethernet (PoE), enabling one-cable connection for communication and power. The unit includes a built-in amplifier, supports pre-recorded audio playback and user-uploaded audio, and delivers high sound pressure (exceeding 92 dB) while maintaining low power consumption.
Basic Information
Model: KNSIPLB-Ex15
Size: 413*254*277MM
Material: Anti-static Polyamide
Features
Functional Description
The KNSIPLB-Ex15 enables operators to remotely address people in live video monitoring scenarios to deter unwanted activity. It can play pre-recorded audio files when triggered manually or automatically in response to alarm events. As a standalone unit, it can be installed anywhere with network connectivity, offering a flexible, scalable, and cost-effective system design.
Type Description
The appearance of the speaker's mold is the same across variants; the main difference is whether a built-in transformer is included.
Product Packing
Unit size: 250 (∅) * 352 (L) mm
Unit G.W.: 3.7 kg
1 pcs in an inside box. Box size: 270 x 270 x 390 mm. G.W.: 3.7 kg
2 pcs in a CTN box. CTN box size: 570 x 290 x 420 mm. G.W.: 7.8 kg
Caractéristiques / Spécifications techniques
SIP Ex Horn Speaker is an explosion-proof IP network horn speaker designed for clear, long-range speech for remote speaking in video surveillance and public address applications. It integrates with Voice over IP (VoIP) telephone systems using SIP (Session Initiation Protocol) and supports Power over Ethernet (PoE), enabling one-cable connection for communication and power. The unit includes a built-in amplifier, supports pre-recorded audio playback and user-uploaded audio, and delivers high sound pressure (exceeding 92 dB) while maintaining low power consumption.
Basic Information
Model: KNSIPLB-Ex15
Size: 413*254*277MM
Material: Anti-static Polyamide
Features
- Explosion-proof speaker design, certified by ATEX standard
- Material/Colour: Anti-static Polyamide / Black
- Waterproof and dustproof rating: IP66
- Service temperature range: -40 °C to +55 °C
- 360° lossless broadcast capability
- IP network horn speaker — explosion-proof and waterproof
- Suitable for public address and paging applications
- Applications include petroleum, metallurgy, chemical industry, sea oil, nuclear power, shipbuilding, tunnels, and other environments requiring explosion-proof grade speakers
Functional Description
The KNSIPLB-Ex15 enables operators to remotely address people in live video monitoring scenarios to deter unwanted activity. It can play pre-recorded audio files when triggered manually or automatically in response to alarm events. As a standalone unit, it can be installed anywhere with network connectivity, offering a flexible, scalable, and cost-effective system design.
Type Description
The appearance of the speaker's mold is the same across variants; the main difference is whether a built-in transformer is included.
Product Packing
Unit size: 250 (∅) * 352 (L) mm
Unit G.W.: 3.7 kg
1 pcs in an inside box. Box size: 270 x 270 x 390 mm. G.W.: 3.7 kg
2 pcs in a CTN box. CTN box size: 570 x 290 x 420 mm. G.W.: 7.8 kg
Caractéristiques / Spécifications techniques
- Model: KNSIPLB-Ex15
- Type: Explosion-proof IP Network Horn Speaker (SIP)
- Material: Anti-static Polyamide, black finish
- Dimensions: 413 x 254 x 277 mm (product); unit packing dimensions noted above
- IP rating: IP66 (waterproof and dustproof)
- Operating temperature: -40 °C to +55 °C
- Acoustic output: Sound pressure exceeding 92 dB
- Power & connectivity: Built-in amplifier; supports Power over Ethernet (PoE) and SIP/VoIP integration
- Broadcast: Supports live announcements, pre-recorded audio playback, and user-uploaded audio
- Certification: ATEX (explosion-proof compliant)
- Applications: Petroleum, metallurgy, chemical, offshore oil, nuclear power, shipbuilding, tunnels, and other hazardous-area projects
- Packing weight: Unit G.W. 3.7 kg; 2 pcs CTN G.W. 7.8 kg
- Type note: Same external mold appearance for variants; variants differ by presence/absence of built-in transformer
