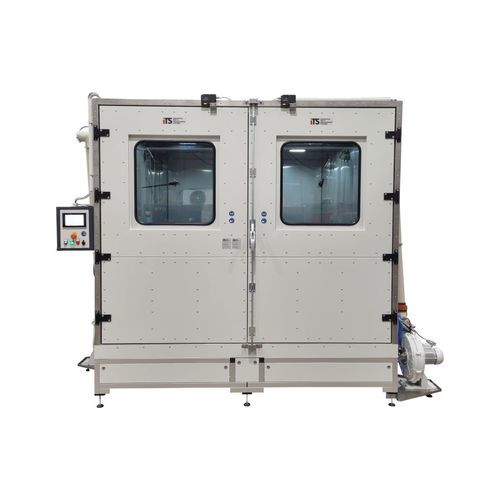

防塵テストチャンバー SK-XL気候環境用砂
お気に入りに追加する
商品比較に追加する
特徴
- タイプ
- 気候
- 試験の種類
- 環境用, 防塵, 砂
- 製品応用
- 電気装置, バッテリー用, ヒートポンプ用
- 応用分野
- ヨーロッパ規格用, 国際規格用
- 構成
- 床置き, ウォークイン, モジュール式
- 光源
- LED
- ドア数
- 扉1枚, 扉2枚
- チャンバー素材
- ステンレススチール製
- オプションとアクセサリー
- タッチスクリーン制御式, PLC制御
- その他の特徴
- 自動
- 長さ
2,600 mm
(102.36 in)- 幅
2,250 mm
(88.6 in)- 深さ
2,000 mm
(79 in)
詳細
Overview
The SK series dust chambers meet the following national and international standards:
Functionality
The SK series dust test chambers offer a fully automated solution for conducting dust exposure tests. The vacuum system for tests according to DIN EN 60529 is fully automated. The chamber regulates the vacuum to 20 mbar and automatically determines the test duration.
Technical information
Test chamber dimensions (W x D x H) [mm] — 2600 x 3600 x 2000
Door opening W x H [mm] — 2400 x 1900
Number of doors with 1 windshield wiper — 2
Viewing window size W x H [mm] — 2 windows: each 710 x 680
External dimensions W x D x H [mm] — 3800 x 3700 x 2500
Chamber weight [kg] — 3000
Number of dust blowers — 6
Number of vacuum devices — 1
Test room lighting — Yes / LED
Cable entry [number / diameter mm] — after voting
Load capacity test grid [kg] — Max. 1000 / (Distribution: 500 kg/m²)
Control panel position — exclusive links
Caractéristiques / spécifications techniques
The SK series dust chambers meet the following national and international standards:
- IEC 60529:1989 + A1:1999 + A2:2013
- ISO 20653
- EN 60068-2-18
- JIS 207D
- IEC 60598-1
- L.V. 124
- GS 95003-4
- MIL STD 810G (Special Cabin)
Functionality
The SK series dust test chambers offer a fully automated solution for conducting dust exposure tests. The vacuum system for tests according to DIN EN 60529 is fully automated. The chamber regulates the vacuum to 20 mbar and automatically determines the test duration.
Technical information
Test chamber dimensions (W x D x H) [mm] — 2600 x 3600 x 2000
Door opening W x H [mm] — 2400 x 1900
Number of doors with 1 windshield wiper — 2
Viewing window size W x H [mm] — 2 windows: each 710 x 680
External dimensions W x D x H [mm] — 3800 x 3700 x 2500
Chamber weight [kg] — 3000
Number of dust blowers — 6
Number of vacuum devices — 1
Test room lighting — Yes / LED
Cable entry [number / diameter mm] — after voting
Load capacity test grid [kg] — Max. 1000 / (Distribution: 500 kg/m²)
Control panel position — exclusive links
Caractéristiques / spécifications techniques
- Item number (SKU): 14623
- Brand: iTS GmbH
- Model / Series: SK-XL
- Test chamber internal dimensions (W x D x H): 2600 x 3600 x 2000 mm
- External dimensions (W x D x H): 3800 x 3700 x 2500 mm
- Door opening (W x H): 2400 x 1900 mm
- Viewing windows: 2 × 710 x 680 mm
- Number of doors with windshield wiper: 2
- Number of dust blowers: 6
- Number of vacuum devices: 1 (vacuum regulated to 20 mbar for DIN EN 60529 tests)
- Chamber weight: 3000 kg
- Test room lighting: LED
- Load capacity test grid: max. 1000 kg (distribution: 500 kg/m²)
- Cable entry: after voting (number / diameter to be specified)
- Control panel position: exclusive left
