絶対圧力計 LEO Ultimate

相対デジタル電子

Product Description

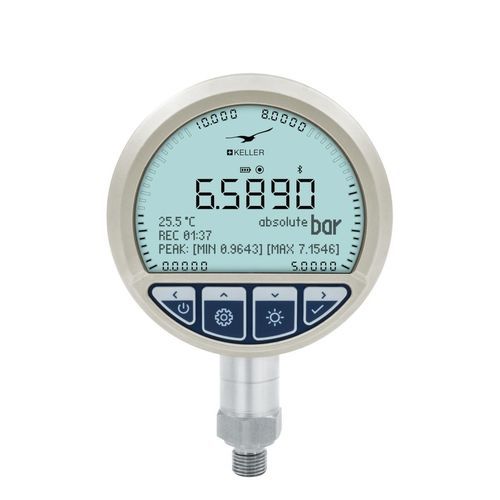

The LEO Ultimate digital pressure gauge is a high-precision measuring instrument designed for demanding applications in calibration, service and industry. It combines piezoresistive measurement technology with advanced analysis functions, enabling both absolute and relative pressure measurements in a single device. Thanks to the integrated barometer, it is possible to switch between the two pressure types at any time without the need for additional sensors. The various measurement modes enable the analysis of static and dynamic pressure profiles as well as leakage tests. This range is complemented by a data logger function for recording over extended periods. Parameterisation and data retrieval are carried out via USB-C or wirelessly via Bluetooth. Measurement data can be visualised and documented using the PressureSuite software. The robust metal housing with IP67 protection and the easy-to-read display allow the device to be used even under demanding environmental conditions.

Key product items

• Measurement technology: piezoresistive
• Pressure types: absolute and relative (switchable thanks to integrated barometer)
• Measurement modes: static and dynamic pressure profiles, leakage tests
• Data logger function for long-term recording
• Interfaces: USB-C (USB 2.0) and Bluetooth BLE (wireless)
• Housing: robust metal housing with IP67 protection

Characteristics / Spécifications techniques

• Denomination commerciale: LEO Ultimate
• Pressure ranges: -1...1 to 0…1000 bar; -15…15 bis 0…15000 psi
• Accuracy: ±0.05 %FS (optional ±0.01 %FS)
• Total error band: ±0.05 %FS @ 0…50 °C
• Interfaces: USB 2.0 (USB-C), Bluetooth BLE
• Integrated barometer: enables switching between absolute and relative pressure without additional sensors
• Functions: static/dynamic analysis, leakage tests, data logger
• Special characteristics: high-precision reference instrument
• Protection: IP67
• Housing: robust metal housing
• Display: easy-to-read display
