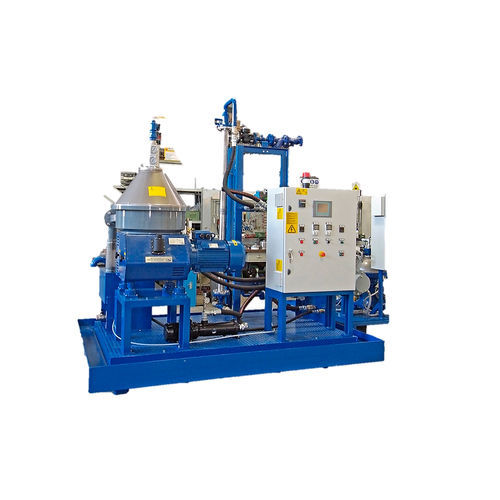

遠心分離器

オイル用製造ライン用自動

Overview
MACFUGE systems are ideal for heavy-duty applications: they continuously remove impurities, such as solid particles and water, from combustible and lubricating oils. The modular composition allows selection of accessories to make the process more efficient and automated.

Accessories

• electric heaters
• sludge handling unit
• feed pumps

Environments / Applications
Suitable for all applications and environments: Offshore - Sea - Explosive - Arctic - Tropical. All MACFUGE equipment is available in an explosion proof configuration for hazardous areas (ATEX certification).

Advantages of using a MACFUGE centrifugal separator

• Continuous separation of the incoming product
• Extending the useful life of the product
• Significant reduction of equipment wear
• Low volume of waste to be disposed of
• Does not require flocculants
• Works effectively even on floating platforms
• The applied centrifugal force is higher than that of a hydro cyclone
• It does not use filters that clog quickly and that must be changed frequently
• Fully automated cleaning by the mean of the control panel

Applications by fluid type
Lubricating and hydraulic oil
The MACFUGE "turnkey" system is designed to preserve processes that use mineral oil, removing contamination from water and particles. Installed on offshore platforms, power plants and heavy industry plants, MACFUGE systems guarantee excellent performance and long-term operation of all turbomachinery and equipment.

Liquid fuels
In the maritime field MACFUGE centrifuges treat marine diesel oil (MDO) and heavy fuel oil (HFO), lowering pollutant levels to meet legal requirements and increasing fuel quality.

Scrubber water
MACFUGE centrifuges purify water used for exhaust gas recirculation (EGR), removing soot and other contaminants so treated water discharge complies with Marine Environment Protection Committee requirements.

Slop oil and sludge oil
The MACFUGE system reduces the volume of these wastes to a minimum, recovering most of the still usable oil and reducing disposal (incineration) costs.

Process water
MACFUGE purifiers reduce pollution in process water to meet stringent regulations, enabling reuse and reducing wastewater volume.

Deck drain and bilge water
Offshore platforms and ships create contaminated water that must be treated before sea discharge; MACFUGE centrifuges allow on-site treatment to meet legal parameters.

Oil industry
For heavy crude oil (HCO) production, MACFUGE systems remove solid particles and water, limiting chemical additive and thermal energy use.

Caractéristiques / spécifications techniques

• Continuous removal of solid particles and water from combustible and lubricating oils
• Modular composition allowing selection of accessories (electric heaters, sludge handling unit, feed pumps)
• Available in explosion-proof (ATEX) configuration for hazardous areas
• Suitable for Offshore, Sea, Explosive, Arctic, Tropical environments
• Treats lubricating/hydraulic oils, marine diesel oil (MDO), heavy fuel oil (HFO), scrubber water, slop/sludge oil, process water, deck drain and bilge water
• Higher applied centrifugal force than hydro cyclones
• Does not require flocculants and avoids clogging filters
• Fully automated cleaning via control panel
• Reduces waste volume and enables recovery of reusable oil
