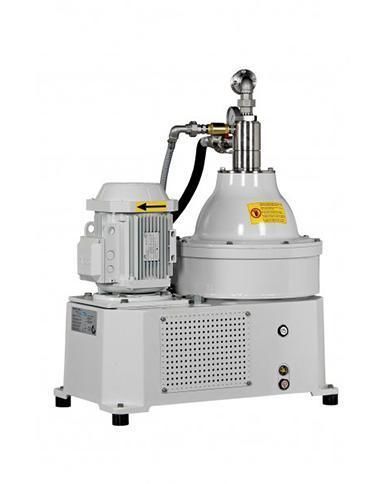

実験用遠心分離機

加工パイロットコンパクト

Overview
The MACFUGE disks centrifuges with automatic discharge are designed and built to separate a mixture of liquids having different specific weight and a solid. The bowl “self-cleaning” or “with automatic discharge” means the capacity of the centrifuge to eject the solids, which have been separated from the liquids, using an hydraulic system in the bowl bottom, while running at full speed. These machines are simple and offer different configurations according to process requirements. The MACFUGE centrifuges are reliable, user-friendly, easy to dismount for the maintenance and cleaning and allow their use in any process industry that requires fluids separation. They can be manufactured in any material and to work in areas classified CE-ATEX. Within the range of MACFUGE with automatic discharge of small size, we have MACFUGE MODULAR SYSTEMS. Each system is a complete plug-and-play module skid mounted, they are small, transportable units for fluids separation, clarification and purification on a small scale.

Operation/Functioning
The product to be separated enters inside of the bowl via fixed feed pipe. The discharging functions are executed at different time intervals pre-determined by the operator through a PLC, in the control panel. The opening time (volume discharged) and the discharge frequency are regulated by setting the times of opening and closing of the solenoid valves. Depending from the time setting, the machine is ready to achieve both partial and total discharge of the bowl content. The efficiency of the centrifuge depends on the characteristics of the mixture to be separated; viscosities, temperature, amount of solid and the difference between the densities of the various phases, are parameters that can significantly affect the separation.

Application

• POWER GENERATION
• OIL & GAS
• MARINE
• BIODIESEL
• VEGETABLE OILS REFINERY
• CHEMICAL PRODUCTS
• FOOD PRODUCTS
• PHARMACEUTICAL
• SOAPS
• DAIRY
• BREW
• JUICE

Customization
MACFUGE offers customization based on the product characteristics and specific project requirements studied by the Technical Department.

Models and technical data
Macfuge 260
Bowl: Rotation speed 9.600 rpm
Motor: Power 3 Kw
Dimensions: mm 370 X 680 X h. 780

Macfuge 325
Bowl: Rotation speed 8.500 rpm
Motor: Power 5,5 Kw
Dimensions: mm 600 X 900 X h. 1200

Macfuge 450
Bowl: Rotation speed 7.600 rpm
Motor: Power 15 Kw
Dimensions: mm 760 X 1250 X h. 1600

Macfuge 590
Bowl: Rotation speed 5.800 rpm
Motor: Power 22 Kw
Dimensions: mm 1000 X 1500 X h. 2000

Macfuge 680
Bowl: Rotation speed 4.700 rpm
Motor: Power 37÷45 kW
Dimensions: mm 1050 X 2000 X h. 2100

Macfuge 710
Bowl: Rotation speed 4.800 rpm
Motor: Power 30 kW
Dimensions: mm 1300 x 1900 x h. 2300

Macfuge 711
Bowl: Rotation speed 5.300 rpm
Motor: Power 30 KW
Dimensions: mm 1300 X 1900 X h. 2300

Caractéristiques / spécifications techniques

• Self-cleaning bowl with hydraulic automatic discharge at bowl bottom while running at full speed
• PLC-controlled discharge timing: adjustable opening time (volume) and discharge frequency via solenoid valves
• Suitable for separation of liquid-liquid-solid mixtures; efficiency depends on viscosity, temperature, solids concentration and density differences
• Available in multiple materials and configurable to operate in CE-ATEX classified areas
• Small-size plug-and-play modular skid-mounted systems available for transportable, small-scale separation/clarification/purification
• Range of models with bowl speeds from approx. 4,700 rpm to 9,600 rpm and motor powers from 3 kW up to 45 kW
