magnetic laboratory shaker / analog / flask / ultra-flat
HOTPLATE 6

Add to MyDirectIndustry favorites
Compare this product

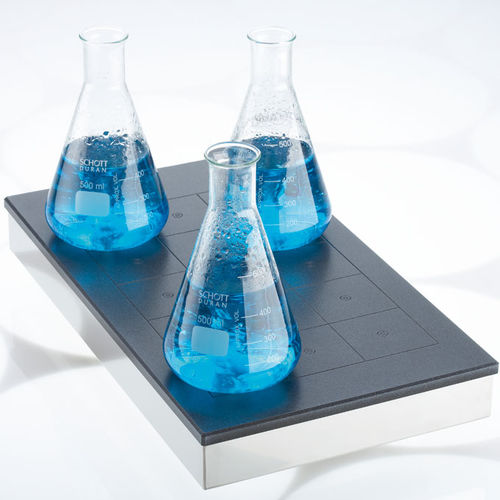

magnetic laboratory shaker / analog / flask / ultra-flat magnetic laboratory shaker / analog / flask / ultra-flat - HOTPLATE 6
{{requestButtons}}

Characteristics

  • Type:

    magnetic

  • Display:

    analog

  • Product applications:

    flask

  • Other characteristics:

    ultra-flat, hot plate, multi-position

  • Rotational speed:

    Min.: 100 rpm (628 rad.min-1)

    Max.: 2,000 rpm (12,566 rad.min-1)

Description

Stirring-heating plate combination with 6 stirring positions, incl. control unit heatMIXcontrol, universally applicable for miscellaneous vessel sizes and shapes, stirring point distance 130 mm, suitable for 6 x 1,000 ml Erlenmeyer flasks.

Stirring - Powerful 6 stirring points, maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept, extremely wide speed range of 100 to 2,000 rpm, 100% synchro-nized speed, jerk-free stirring even at low speeds, 10-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer, clear digital display for settings of stirrer speed, stir-rer power and temperature of the integrated heater, SoftStart procedure for reliable cat-ching/centering and safe acceleration of the stirring bar.

Heating - Heating plate made of resistant aluminium alloy, PTFE-coated for increased che-mical resistance and easier cleaning, fast heating-up by powerful integrated electrical heater, homogenous temperature distribution, maximum heating temperature +200 °C, PowerDetect for automatic compensation of physically determined loss in stirring power which can come up to 40% at high temperatures, independent over-temperature protection inside the plate.

Inclusive separate control unit for operation of magnetic stirrer and integrated heater, for long-term protection of the electronics against aggressive liquids and gases as well as thermal influences, stainless steel housing.
