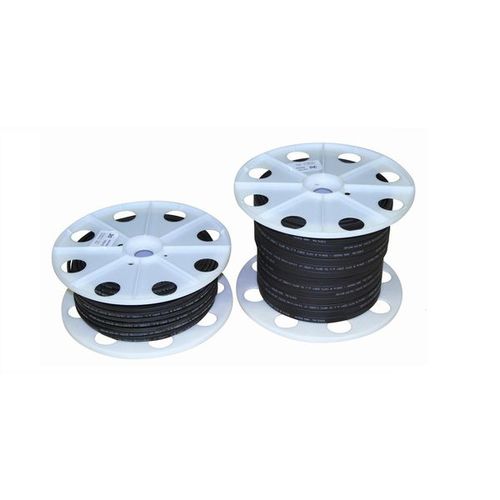

Silicone-insulated heating cable RAG series

for pipe trace heatingself-regulating

RAG15 self-limiting heating tape (15W/m at +10°C) is delivered in 100m drums to be cut and connected on site ; main use is to prevent frost from pipes. RAG20 self-limiting heating tape (20W/m at +10°C) is delivered in 100m drums to be cut and connected on site ; main use is to prevent frost from pipes or tanks; it can be used also to prevent snow from roofs and gutters. It is water and sun resistant RAG20W self-limiting heating tape (9W/m at +55°C): main use is temperature maintenance of pipes up to + 55°C Advantage Can be cut-to-length at site, precisely, without wastage Self-regulating characteristics allow to switch on one alone tape in two different temperature environment. Water and sun resistant aluminiupm tape and earth lead make electrical screening Installation, easy and simple technical data Code - RAG15 - RAG20 - RAG20W Protective cover - TPE - TPE - TPE Cold leads (tinned CU) - 0.56 mm² - 1.23 mm² - 1.23mm² Max. exposure t° (turned off) - +65°C - +80°C - +100°C Max. maintenance t° (turned on) - +65°C - +65°C - +80°C Voltage - 230V - 230V - 230V Min. bending radius - 25 mm - 25 mm - 20mm Min. Installation t° - -30°C - -30°C - -20°C Agreement - CSTB - CSTB - Dimensions. (mm) - 8x5.5 - 13.6x5.5 - 12.9x5.0 Weight (g/m) - 72 - 117 - 86 Power 230V (W/m) à +10°C - 15 - 20 - 21
