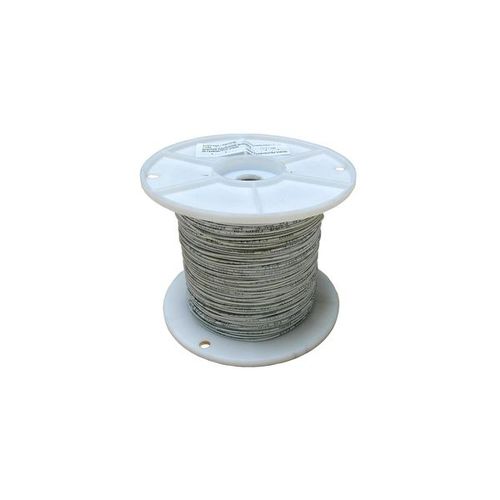

PVC-insulated heating cable CI

silicone-insulatedthermoplastic-insulatedresistive

Making of heating cables, heating mats, heating panels and heating clothes for freezing and air-conditioning industries and various industries Cold room door framing cables (from 15 to 20 W/m) Cold room evaporator de-icing cables (30 W/m) Refrigerating cabinet de-misting (20 W/m for static cabinets - 30 W/m for ventilated cabinets) ADvantages An heating cord allows to get both high resistance value, good flexibility and real strength, which could not be obtained with a single resistant wire. TECHNICAL DATA Resistance value : up to 30.000 ohms/m ± 10% Standard diameter : - without tinned copper braid : 2.6mm ± 0.1mm - with tinned copper braid : 3.2mm ± 0.1mm Max. output : 35 W/m Max. voltage : 400V Max. exposure temperature (power off) : +150 °C Optional tinned copper braid Standard insulation : thermoplastic rubber Other insulation : PVC or silicone rubber insulation on request Use precaution The heating cable or cold lead must not be shortened The heating cable must not touch any sharp edged parts The heating cable must not cross or touch itself at any place
