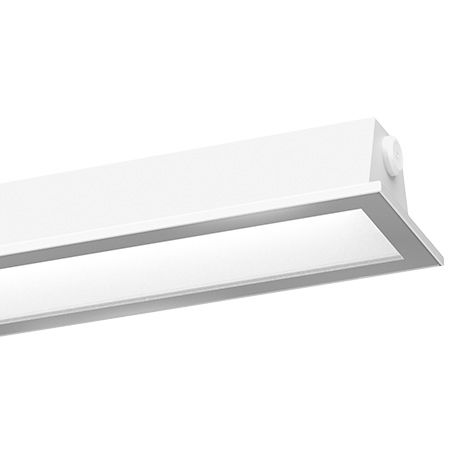

Safety lighting 3F X8

LEDIP64integrated

Direct diffused symmetric distribution. Lifetime (L80/B10): 100000 h. (tq+25°C) Lifetime (L85/B10): 50000 h. (tq+40°C) Photobiological safety RG0. SOURCE Linear LED modules. Colour initial tolerance (MacAdam): SDCM 3. MECHANICAL Housing in white painted aluminium. Flow recuperator. VS moulded glass, non‑combustible, thickness 4 mm, tempered, anti‑glare, with Heat Soak Test (HST) thermal treatment, which drastically reduces the risk of spontaneous breakage. Perimetrical frame in stainless steel, sealing gasket, stainless steel closing screws. ELECTRICAL Insulation voltage 6kV via Sourge Protector. Power cable type FROR 4x1,5 mm² that protrudes by 150 cm from a head, via IP64 sealing grommet, with sheared end. INSTALLATION Ceiling, suspension, CETRA pole or wall installation with specific accessories. Recessed installation using a special built‑in box. Integrated into the 3F1 or 3F2 structure.
