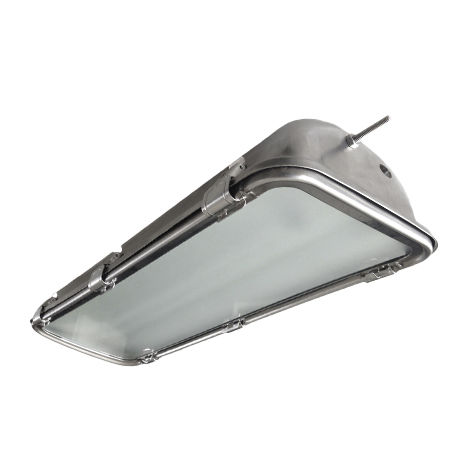

Safety lighting Beta A3F Fosse

LEDfixed

Asymmetric distribution. Lifetime (L85/B10): 50000 h. (tq+25°C) Photobiological safety RG0. SOURCE Linear LED module. Colour initial tolerance (MacAdam): SDCM 3. MECHANICAL Housing in AISI 304 stainless steel, pressed in one single piece with exceptional strength resistance to aggressive chemical agents. Moulded anti‑glare glass, non‑combustible, tempered, thickness 4 mm, mounted and locked to the single‑piece stainless steel perimetrical frame, sealing gasket, hinged opening by means of 6 AISI 304 stainless steel clips. Wide flow recuperator, oversized, in specular aluminium with superficial titanium‑magnesium treatment, non‑iridescent. Gear‑tray unit in hot‑galvanised steel, painted in white polyester, fixed to the housing by means of "Ribloc" rapid devices in AISI 304 stainless steel, hinged opening. ELECTRICAL Entry for power‑supply cable at end cap in asymmetrical position, Ø 20,5 mm hole. The cable gland for feeding input is NOT supplied, by installer. INSTALLATION On double vertical column. Fixing of luminaire in header by means of 2 screws 8MAx45, with stainless steel nuts and washers supplied, (bracket not supplied by 3F or specific 3F accessory to be requested).
