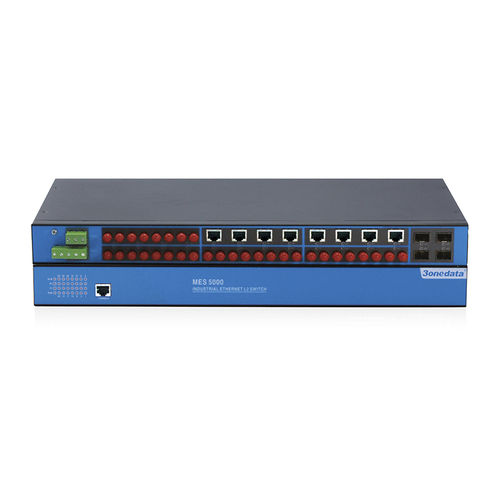

MES5000 series are 28-port 100M/gigabit layer 2 managed industrial Ethernet switches. This series have seven types of products and adopt modular design, which supports 3 4-port 100M fiber/copper port modules. They provide various interfaces like 100M copper port, 100M fiber port and gigabit SFP slot and adopt 1U rack mounting, which can meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, LLDP, IGMP Static Multicast, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
The products are up to the industrial standards of IEC61850 and IEEE1613, and have acquired SGCC’s (State Grid Corporation of China) Class A authentication and CSG’s (China Southern Grid) type test. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It is designed for power industry and can be widely used in the controller layer and process layer network of substations.
