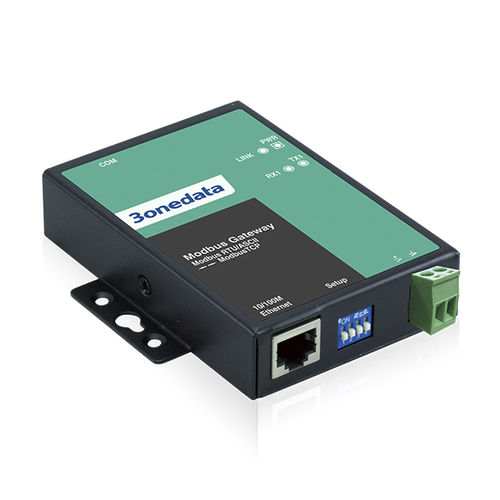

Communication gateway GW1101 Series
EthernetModbusRS-232

communication gateway
communication gateway
Add to favorites
Compare this product


Characteristics

Type
communication
Network
Ethernet, Modbus, RS-232, RS422/RS485

Description

GW1101-1DI(3IN1) 1-port RS-232/485/422 to Ethernet Modbus Gateway -Support 1 3IN1 DB9 serial port and 1 10/100Base-T(X) self-adaptive Ethernet interface -Support conversion between Modbus RTU/ASCII and Modbus TCP protocol -Support RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes -Support virtual and real ID mapping to achieve flexible access between Master and Slave devices -Support 12~48VDC power supply input -Support -40~75℃ wide operating temperature range Modbus gateway supports multiple network protocols, such as Modbus, TCP, IP, UDP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocols. It possesses complete management function, and supports access control, rapid configuration, online upgrading, etc. RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes are supported; it supports up to 32 TCP Slave requests under Master mode and 16 TCP Master connections under Slave mode. TELNET, WEB and other access modes are also supported. It can provide you with good user experience via friendly design of network management system interface, simple and convenient operation. DIP switch can achieve the device restore factory defaults. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.
