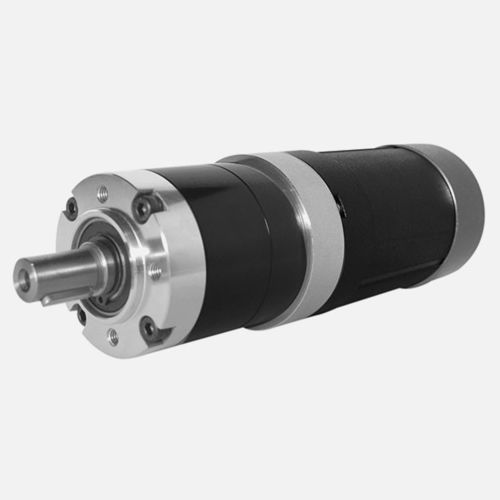

Brushless DC gear-motor 57BYA Seriesthree-phaseplanetarycoaxial
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase, brushless DC
- Type
- planetary
- Shaft orientation
- coaxial
- Power
- 100 W...500 W
- Voltage
- 24 V, 48 V
- Torque
- 0.2 - 0.5 Nm
- Other characteristics
- 4-pole
Description
GENERAL SPECIFICATION
Voltage：24 VDC
Phase：3
Poles：4
Line to line resistance：0.25±10%ohms
Line to line inductance：0.73±20%mH
Rated current：8.2A
Rated output power：138W
No-load speed：4000 rpm
Class insulation：B
Gear Ratio：1:33.92
Output torque：12 N.m
Output speed：88.5 rpm
