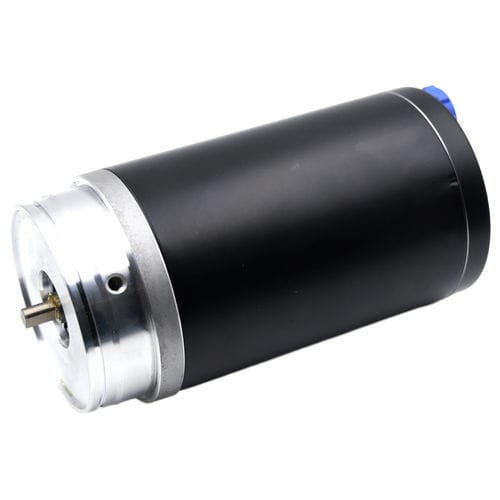

Brushed motor 90ZYT SeriesDC24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 24 V, 12 V, 48 V
- Configuration
- permanent magnet
- Power
Max.: 300 W
(0.408 hp)95 W, 150 W, 250 W
(0.129 hp, 0.204 hp, 0.34 hp)Min.: 150 W
(0.204 hp)- Torque
0.0009 Nm, 0.4 Nm, 0.5 Nm, 1.2 Nm
(0.0007 ft.lb, 0.295 ft.lb, 0.3688 ft.lb, 0.8851 ft.lb)- Rotational speed
1,055 rpm, 1,200 rpm, 4,750 rpm
(6,628.76 rad.min-1, 7,539.82 rad.min-1, 29,845.13 rad.min-1)
Description
GENERAL SPECIFICATION
Voltage Range：12 & 24V dc ( 48V also available )
Power Output Range：150 ~ 300 W
Speed Range：up to 9,000 rpm
Operational Temperature：-20℃ ~ +40℃
Insulation Class：F ( consult us for class B )
Bear Type：High quality ball bearings
Housing Type：Closed ( ventilated also available )
