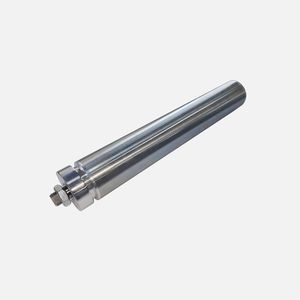

Brushless DC motorized roller 67BWA428D008B-0148 Vfor conveyorwith integrated circuit board
Add to favorites
Compare this product
Characteristics
- Motor type
- brushless DC
- Voltage
- 48 V
- Options
- for conveyor, with integrated circuit board, for industrial applications, zinc-plated steel
- Diameter
67 mm
(2.6 in)- Velocity of the shell
Max.: 3.5 m/s
(11.48 ft/s)Min.: 0 m/s
(0 ft/s)- Rated torque
5 Nm
(3.69 ft.lb)
Description
• Rated Voltage : 48 VDC :
• Rated Power : 400W
• Rated Torque : 5N.m
• Rated Speed : 300-750 rpm
• Maximum Speed : 1100 rpm
• Rated Current : 9 A
• Maximum Current : 25 A
• Insulation Class : Class F
• Encoder Type : Magnetic encoders
• Environment : 0-40
• Weight : 5.2 Kg
• Duty(%) : 25%
