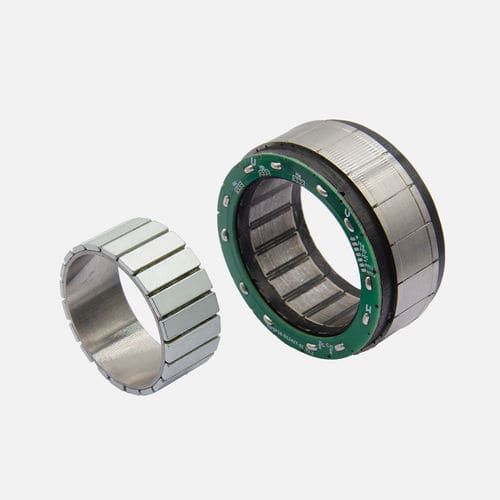

Frameless motor 70FSPDCBLDC48 V
Add to favorites
Compare this product
Characteristics
- Type
- DC, BLDC
- Voltage
- 48 V
- Configuration
- frameless
- Applications
- for humanoid robot
- Power
250 W
(0.34 hp)- Torque
Max.: 2.13 Nm
(1.571007 ft.lb)Min.: 0.66 Nm
(0.486791 ft.lb)- Rotational speed
Max.: 3,650 rpm
(22,933.6264 rad.min-1)Min.: 3,225 rpm
(20,263.2726 rad.min-1)
Description
The 70FSP Series is a Frameless Motors for Next-Gen Robotics and built for humanoid robots and high-end smart equipment, enabling compact, smooth, and precise joint actuation.
Highlights:
• 70FSP18 model overview — rated torque up to 1.24 N·m
• Hollow design for easy routing of shafts, cables, and vision systems
• High torque density with optimized stator & winding design
• Vacuum potting for stability, low loss, and better heat dissipation
• Fast dynamic response from innovative electromagnetic design
• Application demos: humanoid wrist/elbow/shoulder secondary axes
At 3X MOTION TECHNOLOGIES, we focus on innovation, quality, and global service, delivering reliable motion solutions for advanced robotics.
Highlights:
• 70FSP18 model overview — rated torque up to 1.24 N·m
• Hollow design for easy routing of shafts, cables, and vision systems
• High torque density with optimized stator & winding design
• Vacuum potting for stability, low loss, and better heat dissipation
• Fast dynamic response from innovative electromagnetic design
• Application demos: humanoid wrist/elbow/shoulder secondary axes
At 3X MOTION TECHNOLOGIES, we focus on innovation, quality, and global service, delivering reliable motion solutions for advanced robotics.
