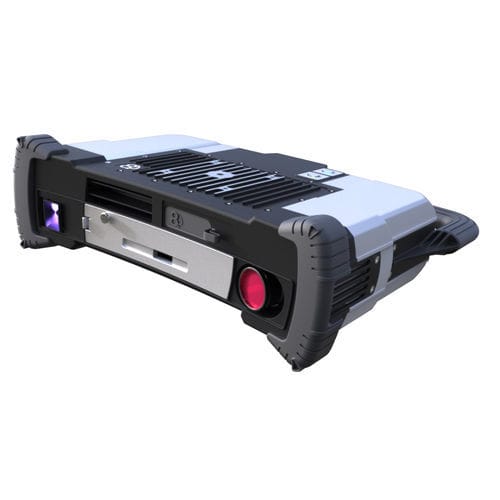

Camera inspection system fastCHECK

3Dmeasurementfor the aerospace industry

The fastCHECK platform represents a ground-breaking approach to measuring fastener/rivet flushness- levels – quickly, consistently and objectively. Operators are empowered with instant “go/no-go” results so they can inspect the aircraft faster and more reliably. Existing configurations of the fastCHECK product platform are optimized for the aerospace sector, with new versions being defined for the marine sector and beyond. fastCHECK sets a new industry benchmark for • Speed: 10x faster than current industry standard – inspect up to 30 fasteners in 4 seconds • Portability: Lightweight, compact, battery-powered, integrated CPU, easy to handle on the production floor • Flexibility: Easily customized to different tolerance needs, measurement results can be recorded in different formats Point-&-Click Designed to be used by operators of all skill levels. Use it like a camera – Simply take a shot and view the results within seconds! Accurate and Consistent Detection Resolution of 0.005 +/- 0.25 mm (Flushness) and 0.012 mm +/- 1 mm (Diameter). Measurement performance can be verified via reference validation plate at any time. Fully Integrated & Networked Self-contained and portable. No external power supply required, 4.5 hours battery life.
