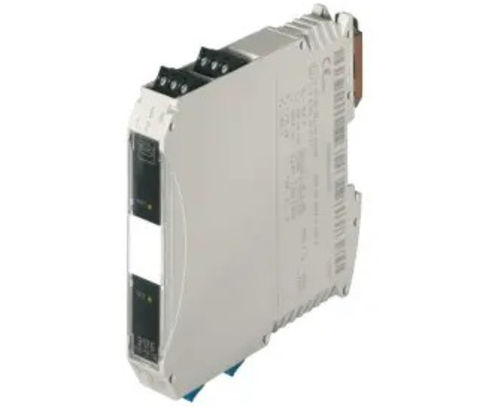

Galvanic isolator 9176

inherently safeATEX

- Types of signals: digital output - IP20 - Filter Zone: Zone 2 | 3 g | Goc - Certificates: ATEX (BVS), Brazil (ULB), Canada (FM), China (NEPSI), Korea (KTL), IECEX (BVS), SIL (Exida), United States (FM) - Sil: 3 - Number of channels: 2 - Modular dimension: 17.60 mm - Connection type: Screw terminal The 9176 series binary outputs provide binary signals for intrinsically safe operation of ex i solenoid valves, light lights or sirens. Devices do not need separate auxiliary power as they are powered by the control circuit. The intrinsic safety outputs are separated from electrically entrances. Two-channel variants are distinguished by electrical separation channels. Ambiant temperature - -20°C to +70°C Temperature class - T4 Warranty - 2¨ Feed - 24V DC Waterproofing protection (IP) - Ip30 Application / usage - ATEX zone ATEX zone - Zone 1/2 Gas class - IIC ATEX protection mode - Ex i (intrinsic safety) Certificates - ATEX.FM.IECEx.SIL Material - Polyamide Certificat_atex-en_us - BVS 04 ATEX E 075 X Certificat_iecex-en_us - IECEX BVS 13.0012 x Body colors - White
