Low-voltage servomotor ADM60 series
brushlessDC24 V

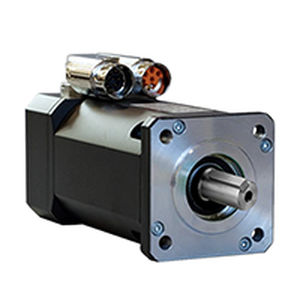

Low-voltage servomotor - ADM60 series - A2V Mécatronique - brushless / DC / 24 V
Low-voltage servomotor - ADM60 series - A2V Mécatronique - brushless / DC / 24 V
Add to favorites
Compare this product
Go to the A2V Mécatronique website for more information

Characteristics

Type
brushless, DC
Voltage
24 V, 48 V
Other characteristics
low-voltage
Power

300 W, 400 W
(0.41 hp, 0.54 hp)

Intensity

Max.: 32 A

Min.: 5.3 A

Torque

Max.: 4.8 Nm
(3.540298 ft.lb)

Min.: 0.7 Nm
(0.516294 ft.lb)

Rotational speed

Max.: 3,500 rpm
(21,991.1486 rad.min-1)

Min.: 1,000 rpm
(6,283.1853 rad.min-1)

Catalogs

No catalogs are available for this product.

See all of A2V Mécatronique‘s catalogs
Go to the A2V Mécatronique website for more information
