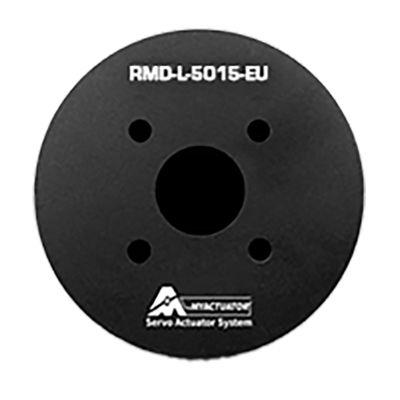

Brushless motor RMD-L-5015-EU
DC24 V12 V

Brushless motor - RMD-L-5015-EU - A2V Mécatronique - DC / 24 V / 12 V
Brushless motor - RMD-L-5015-EU - A2V Mécatronique - DC / 24 V / 12 V
Add to favorites
Compare this product
Go to the A2V Mécatronique website for more information

Characteristics

Type
brushless, DC
Voltage
24 V, 12 V
Configuration
hollow-shaft, with integrated driver and coder, ultra-compact, flat, cylindrical, pancake type
Protection class
IP54
Applications
industrial, for robotics, for collaborative robots, packaging machine, for automatic doors, for rotary tables, agricultural, for medical applications, for the textile industry, for power tools, for agribusiness, for wheelchairs, for electric vehicles, for drones
Other characteristics
NEMA 17, RS-485, with built-in encoder, closed-loop, with integrated inverter, with built-in electronics, CANbus
Power

100 W
(0.14 hp)

Intensity

Max.: 3.62 A

Min.: 0 A

1.57 A

Torque

Max.: 0.82 Nm
(0.604801 ft.lb)

Min.: 0 Nm
(0 ft.lb)

0.36 Nm
(0.265522 ft.lb)

Rotational speed

Max.: 680 rpm
(4,272.566 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

350 rpm
(2,199.1149 rad.min-1)

Operating temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)
