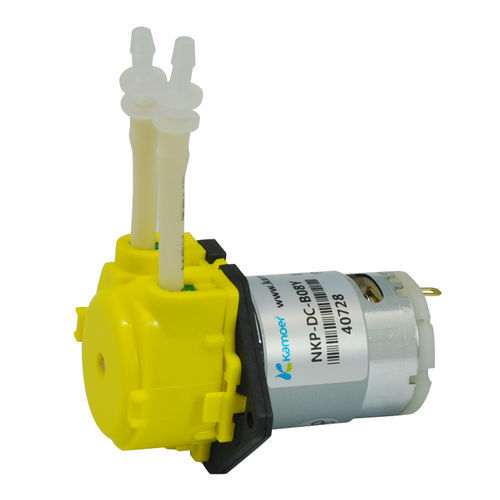

Peristaltic pump NKP

waterwith DC motorself-priming

Main Functions: - Flow Rate: 5.2-90 ml/min - Motor: DC - Power Supply Voltage: 3, 6, 12, 24 V - Quiet operation - Compact size - Easy maintenance - Long lifespan Specifications: - Flow Rate (ml/min): 5.2-90 - Motor: DC - Power Supply Voltage (V): 3, 6, 12, 24 - Current (A): 0.16, 0.15, 0.25, 0.3 - Weight (g): 110 - Temperature: 0-40°C - Humidity: <80% Flow Rate by Model: - Model S04: Pipe Diameter 1.0 x 3.3 mm, Material S, Flow Rate DH ≥ 5.2, DC ≥ 11, DE ≥ 11, DA ≥ 11 - Model S06: Pipe Diameter 2.0 x 4.0 mm, Material S, Flow Rate DH ≥ 20, DC ≥ 39, DE ≥ 45, DA ≥ 40 - Model S08: Pipe Diameter 2.5 x 4.5 mm, Material S, Flow Rate DH ≥ 30, DC ≥ 55, DE ≥ 60, DA ≥ 59 - Model B06: Pipe Diameter 2.0 x 4.0 mm, Material BPT, Flow Rate DH ≥ 15, DC ≥ 33, DE ≥ 38, DA ≥ 34 - Model B08: Pipe Diameter 2.5 x 4.5 mm, Material BPT, Flow Rate DH ≥ 22, DC ≥ 47, DE ≥ 48, DA ≥ 48 Additional Options: - Motor options - Optional mounting plate - Pipe material options - Various flow rates and pipe sizes - Color coding
