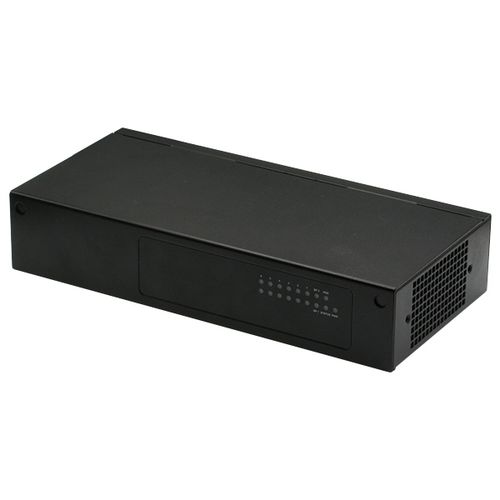

Desktop network appliance FWS-2360

Intel® Atom™ C3000dual-corequad-core

Overview AAEON’s FWS-2360 desktop network appliance is a ready-to-go white box solution with fiber optic technology for faster connection speeds. Powered by the Intel® Atom™ Processor C3000 Series (formerly Denverton), it offers QAT, Intel’s latest security and compression technology. This user friendly device is the perfect system for wireless gateway, SD-WAN, IPS, WAN Optimization, NFV and vCPE applications as it can be expanded to offer WiFi and 4G LTE, and it’s fitted with a range of mass storage connections. Intel QAT Intel QuickAssist Technology speeds up the process of encrypting and the compressing secure information, meaning end users can send private information with complete confidence. With the high-powered CPUs used in the FWS-2360, this work is also isolated from the rest of the system's functions, allowing the device to continue its other functions without losing speed. 1GbE Fiber/ Copper Ports With a pair of fiber/copper SFP GbE ports and four conventional LAN ports, the FWS-2360 has a rich array of I/O capabilities. The SFP GbE ports provide exceptional speed, while the conventional ports allow the FWS-2360 to support a LAN bypass function for up to two pairs for four LAN ports to ensure network traffic availability. Features -Desktop Network Appliance -Intel® Atom™ C3000 Series Processor Supports Dual and Quad Core -DDR4 SODIMM/ ECC DIMM (Dual Core 1 Slot Quad Core 2 Slot) -4 Copper(88E1543) + 2 Copper(I211), optional 4 Copper(88E1543) + 2 Fiber(I210) -2 Pairs Bypass Support -Mini PCIe with SIM Slot Support -Internal 2.5” SATA HDD Bay x 1 (Optional) -eMMC Support up to 16GB -RJ-45 Console x 1 -USB 3.0 x 2 (Internal USB 2.0 x 1)
