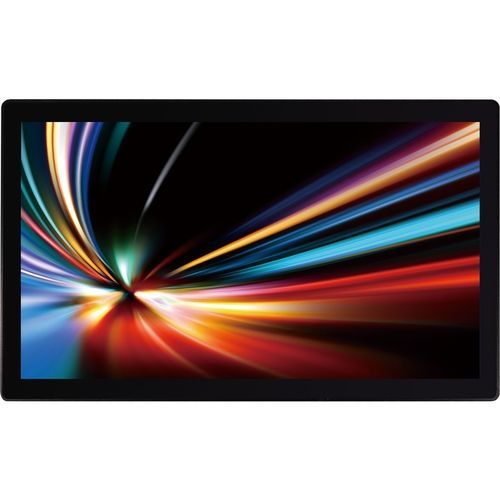

TFT LCD panel PC NIKY-2215-NX

PCAP touchscreenmultitouch screentouch screen

Overview
On-system AI acceleration, robust connectivity, and a 21.5” TFT-LCD projected capacitive multi-touch screen make the NIKY-2215-NX an AI Panel PC for industrial and commercial use. Equipped with NVIDIA® Jetson Orin™ NX performance and an I/O set designed for peripheral device connectivity, the NIKY-2215-NX supports multi-stream AI analytics for applications such as automated optical inspection.

Key features

• 21.5” Full HD (1920 x 1080) TFT-LCD with Projected Capacitive Multi-touch (PCAP)
• NVIDIA® Jetson Orin™ NX AI module (16GB / 8GB variants)
• LPDDR5 system memory: 8GB or 16GB (module dependent)
• Expansion: M.2 2230 E-Key (wireless), M.2 3042/3052 B-Key, M.2 2280 M-Key (NVMe/SSD)
• Interfaces: USB 3.2 Gen 2 x4, Dual GbE LAN, CANBus, RS-232/422/485, DIO
• Wide power input: DC 12V–24V
• Software: Ubuntu 22.04 with NVIDIA JetPack™ support

Applications

• Multi-stream AI analytics
• Automated optical inspection (AOI)
• Industrial and commercial AI HMI solutions

Technical specifications

• Model: NIKY-2215-NX
• Display: 21.5” Full HD 1920 x 1080 TFT-LCD
• Touch: Projected Capacitive Multi-touch (PCAP)
• AI Module: NVIDIA® Jetson Orin™ NX (16GB or 8GB)
• System Memory: LPDDR5 8GB or 16GB (depending on module)
• Storage / Expansion: M.2 2230 E-Key, M.2 3042/3052 B-Key, M.2 2280 M-Key (NVMe/SSD)
• I/O: USB 3.2 Gen 2 x4, DIO, CANBus, RS-232/422/485
• Networking: Dual GbE LAN
• Power Input: DC 12V–24V (wide voltage)
• Software / OS: Ubuntu 22.04 with NVIDIA JetPack™ support
• Use Cases: Designed for on-system AI acceleration and peripheral connectivity to run multi-stream AI analytics such as automated optical inspection in industrial deployments
