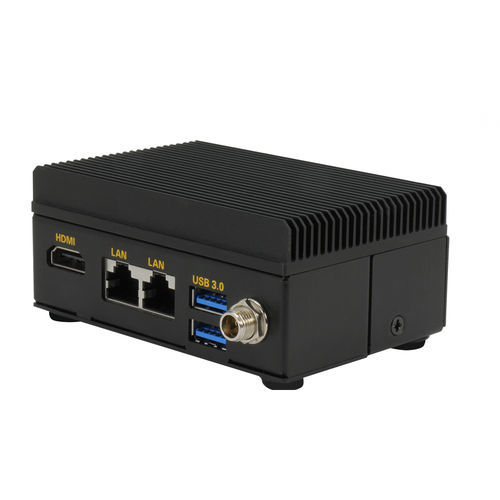

13th Generation Intel® Core™ single-board computer de next-RAP8-EZBOX

M.2HDMIGbE

Overview
Despite its very small footprint, the de next-RAP8-EZBOX integrates a 13th Gen Intel® Core™ Series processor with Intel® Iris® Xe Graphics and Intel® DL Boost. The platform delivers up to 10 cores and 12 threads to accelerate neural-network and computer-vision workloads for industrial automation, robotics path planning and vision-based inspection.

Key Features

• Onboard 13th Gen. Intel® Core™ Series Processor (15W TDP)
• Onboard LPDDR5x up to 16GB
• HDMI 1.4b x1
• 2.5GbE RJ45 x1, GbE RJ45 x1
• USB 3.2 Gen 2 x2
• M.2 2280 M-Key x1 (PCIe x2) for NVMe SSD
• DC 12Vin power input
• Fan-assisted or passive heatsink cooling options

Details

• High compute density: 13th Gen Intel® Core™ CPU with Intel® Iris® Xe Graphics and Intel® DL Boost provides on-device acceleration for vision and AI inference.
• Integration-ready thermal design: 15W hybrid CPU and LPDDR5x memory reduce heat and power draw; available with fan-assisted or passive heatsink for sealed enclosures.
• Comprehensive I/O: Dual LAN (2.5GbE + GbE), two USB 3.2 Gen 2 ports and HDMI support cameras, sensors and peripherals; M.2 2280 M-Key supports high-speed NVMe storage.

Technical specifications

• Model: de next-RAP8-EZBOX
• Processor: Onboard 13th Gen Intel® Core™ Series Processor (15W TDP)
• Cores / Threads: Up to 10 cores and 12 threads
• Graphics: Intel® Iris® Xe Graphics
• AI Acceleration: Integrated Intel® DL Boost
• Memory: Onboard LPDDR5x up to 16GB
• Storage Expansion: M.2 2280 M-Key x1 (PCIe x2), supports NVMe SSD
• Video Output: HDMI 1.4b x1
• Networking: 2.5GbE RJ45 x1, GbE RJ45 x1
• USB: USB 3.2 Gen 2 x2
• Power Input: DC 12Vin
• Cooling Options: Fan-assisted and passive heatsink options
• Form Factor: Ultra-compact embedded system suitable for sealed enclosure integration
• Awards: Taiwan Excellence
