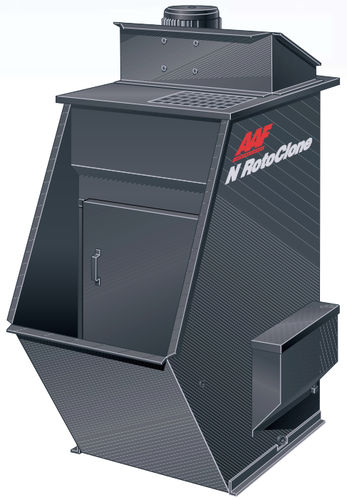

Filter dust collector RotoClone® LVN series
pulse-jet backflowcompact

filter dust collector
filter dust collector
filter dust collector
Add to favorites
Compare this product


Characteristics

Technology
filter
Backflushing
pulse-jet backflow
Other characteristics
compact
Output

2,500 ft³/min
(70.7921 m³/min)

Description

Product Overview The RotoClone® LVN collector was patterned after the standard RotoClone® N collector, which has been installed in thousands of applications since its introduction in the 1940s. It is an efficient, compact and economical wet-type dust collector specifically designed for volumetric flow rates of 2,500 CFM or less. Although the basic operating principal has remained unchanged, many refinements have been made. The result is carefully engineered SIMPLICITY. The RotoClone® LVN collector provides an efficient and dependable method of in-plant dust control with minimal maintenance requirements. It cleans the air by the combined action of centrifugal force and a violent inter-mixing of water and dust-laden air. The dust is separated from the gas stream by means of a water curtain created by the high velocity flow of air past a stationary impeller. This high velocity flow carries water with it in a heavy turbulent sheet. The centrifugal force exerted by the rapid changes in direction of airflow causes the dust particles to penetrate the water droplets and become permanently trapped within them. The dust-laden water droplets are then removed from the air stream by the water eliminator. The dust settles in the bottom of the collector and the water is reused. Since the water curtain is produced by the airflow, no pumps or nozzles are required. Typical Applications Ceramics Chemicals Metalworking Food Processing Pharmaceutical Foundries Rubber and Plastic Lead Battery Plants Benefits Compact design No water overflow Low maintenance

Catalogs

No catalogs are available for this product.

See all of AAF International‘s catalogs
