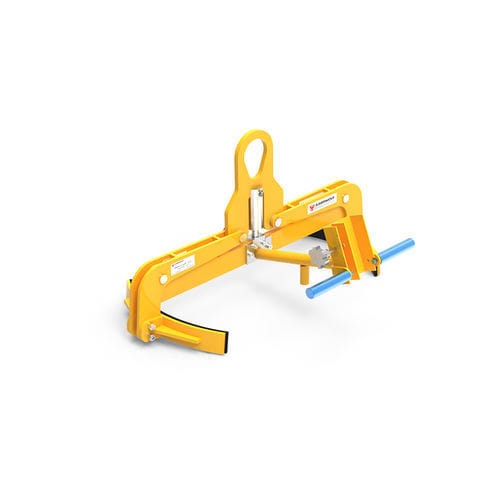

Automatic drum lifter ADC-572

built-inportablemobile

Overview
The ADC-572 drum lifting clamp is engineered for safe lifting and handling of drums in a vertical position. It closes automatically when lifted and unlocks when set down via an integrated latch. Curved clamping jaws adapt to drum diameters for secure grip. Suitable for use with cranes or forklift booms. Constructed in high-resistance steel alloy for industrial use.

Features

• Compact, space-efficient design for dense storage areas
• Lightweight construction for easy handling between drums
• Integrated automatic latch for secure closing and safe release
• Smooth, controlled picking and placing of drums
• Low maintenance requirements

Specifications
Metric | Imperial
Grip range: 572 mm | 22.5 in
Working load limit (WLL): 500 kg | 1102 lb
Net weight: 17 kg | 37.5 lb
Dimensions: 745 x 345 x 377 mm | 29.2 x 13.9 x 14.8 in

Technical details

• Model: ADC-572
• Brand: Aardwolf
• Grip range: 572 mm (22.5 in)
• Working load limit (WLL): 500 kg (1102 lb)
• Net weight: 17 kg (37.5 lb)
• Dimensions (L x W x H): 745 x 345 x 377 mm (29.2 x 13.9 x 14.8 in)
• Material: high-resistance steel alloy
• Operation: automatic closing on lift; latch unlocks when rested
• Compatibility: designed for use with cranes or forklift booms
