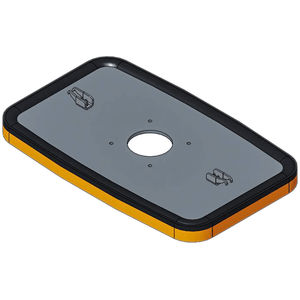

Length: 520, 700, 850, 900 mm
Width: 70 mm - 150 mm
Height: 70 mm - 140 mm
... direct coupling to the operating valve unit or the hose cylinder extension. Suction plates with attached foam rubber seal, including lifter for tactile steering. Other suction plates on request. ...
Length: 135, 107, 290 mm
Width: 60, 75, 140 mm
Height: 26 mm
... foam‑rubber suction cup manufactured from a special NR (natural rubber) foam compound. The material density and elasticity enable secure gripping on very rough and irregular surfaces while maintaining performance over ...
PNEUMAX
Diameter: 40 mm - 127 mm
Working temperature: -20 °C - 80 °C
... bricks, especially where large suction cup deformation is required.
PNEUMAX
Diameter: 21 mm - 70 mm
Height: 14.8 mm - 58.5 mm
Working temperature: 10 °C - 50 °C
... porous or irregular surfaces, such as cardboard. Polyurethane
suction
cups are mark resistant.
Applications
- Packaging and handling of packaged products
- Handling
PNEUMAX
Diameter: 6 mm - 53 mm
Weight of the suction cup : 0.1 µg - 21,600,000 µg
... suitable for the removal of hot plastic parts from the relevant moulds • A FDA-compliant silicone version, suitable for handling unpackaged food, is available. ...
GIMATIC
Diameter: 40, 50 mm
Weight of the suction cup : 24.6, 13.3, 42.3, 26.5 g
... • Ideal for handling bags containing fragile products and bags with liquids and frozen foods • Strong bellows, soft and flexible lip and special high flow rate fittings • Version with 4.5 bellows • They enable to compensate for level ...
GIMATIC
Diameter: 25, 9 mm
Weight of the suction cup : 11, 13, 59 g
... • Ideal for handling food products • Detectable FDA-compliant silicone compliant with FDA 21 CFR 177.2600 standards • Available with separable, acid-resistant, food-grade stainless steel fitting • Easy to clean thanks to the hygienic ...
GIMATIC
Diameter: 157.7, 153 mm
Height: 27 mm
Working temperature: 0 °C - 90 °C
... Suitable for handling large and heavy sheets, such as glass and metal, with a flat or slightly concave surface. Friction pattern increases safety and capabillity to handle tilted or standing glass/metal sheets. Double lip ...
PIAB
Diameter: 1.5 mm - 16 mm
... ・Overall length shortened ・Pad form: Flat type, Flat type with groove, Bellows type, Bellows type with ribs ・Mounting: Male thread, Female thread ・Vacuum inlet direction: Vertical, Lateral ・Vacuum inlet: Male thread, Female thread, One-touch fitting, ...
Diameter: 40 mm - 125 mm

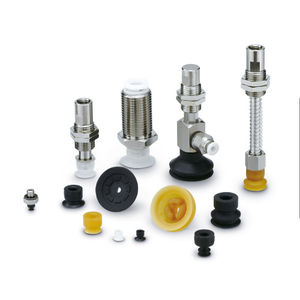

... SMC's series ZP, ZP2 and ZP3 suction cups offer a complete line of cup options to meet all of your handling and transfer needs. A wide range of sizes, shapes and materials allow design ...
Diameter: 10 mm - 150 mm
Working temperature: -60 °C - 250 °C
... PBG vacuum pads feature a 1-1/2" bellows type cup intended for curved, corrugated, lightly textured surfaces and flexible product. Cup sizes: 10 to 150 mm These cups ...
Parker Pneumatic Division Europe
... Simrit has created pneumatic suction cups that features vulcanized mounting elements for rapid and simple fitting, superior product quality, incredible versatility along with numerous application possibilities . It is ...
Diameter: 5 mm - 52 mm
Working temperature: -40 °C - 220 °C
... Silicone Applications: - Handling of even or uneven workpieces such as plates for car bodies, tubes, cardboard boxes - Handling of fragile workpieces such as electronics components, injection moulded pieces, etc - ...
CAMOZZI AUTOMATION
Diameter: 40 mm
Height: 68 mm - 75.5 mm
Working temperature: -40 °C - 180 °C
... and handling
Category Vacuum Pad
- SpecificationsBrand: PISCO
Working temperature: 5 °C - 50 °C
... Vacuum Gripper suitable for conveyance of large work-piece. 2 types of grippers are available: whole surface sponge type and arranged Vacuum Pads type. Body width (50 mm, 100 mm) and length (200 ...
Diameter: 1.5 mm - 80 mm
... li>Use G1/8 or M5 adapter variants for integration with standard
vacuum ports where available
Technical specifications
- Series name: ZU (flat suction cup)
- Manufacturer
ZIMMER GROUP
Diameter: 15 mm - 300 mm
... Product overview
- Flat suction cup for handling flat surfaces. Knobbed profile on the underside increases friction between workpiece and suction cup
ZIMMER GROUP
Diameter: 25 mm - 100 mm
... Optimum geometry
- Designed for handling thin, oily and curved metal sheets and car body panels
- Friction structure on the underside increases slip resistance between workpiece and vacuum suction
ZIMMER GROUP
Diameter: 0, 50, 20, 30 mm
Height: 30, 45, 58, 68 mm
... description
Thanks to their bellows shape and flexibility, these
vacuum
cups are designed for installation on automatic, high-production packaging machines for gripping and
handling flow pack packages. ...
VUOTOTECNICA
Diameter: 0.4 cm - 0.9 cm
... Product description
These traditional
cup-shaped
vacuum
cups are suited for gripping and
handling small objects with flat, slightly concave or convex surfaces. This range of ...
VUOTOTECNICA
Diameter: 0 mm - 0 mm
Weight of the suction cup : 0 g - 0 g
... Vacuum cups with supports These traditional cup-shaped vacuum cups are suited for gripping and handling objects with flat, slightly concave or convex ...
VUOTOTECNICA
Diameter: 3 mm - 95 mm
Height: 7 mm - 37 mm
Weight of the suction cup : 0.24 g - 49 g
... Universal Style Flat Vacuum Suction Cups with Interchangeable Fittings Selecting a style of vacuum suction cup is determined primarily by the product ...
ANVER Vacuum System Specialists
Diameter: 16.6 mm - 155.6 mm
Height: 7.6 mm - 33 mm
... Vacuum Cup Materials The standard materials are Nitrile and Silicone (as noted below each part number). For more information on the materials, click here. Ideal for use on plane surfaces, where minimum movement ...
ANVER Vacuum System Specialists
Diameter: 5.2 mm - 51.6 mm
Height: 6.6 mm - 17.7 mm
... • The standard materials are Nitrile and Silicone (as noted below each part number). For general purpose use on flat or slightly curved surfaces. Available in sizes from 0.21 to 2.03 inches (5.2 to 51.6 mm). ...
ANVER Vacuum System Specialists
Weight of the suction cup : 1 g
... Product Family: Flachsauger Stroke: 0[mm] Weight: 1[g] ...
Diameter: 22 mm - 127 mm
... Structured suction cups for gripping thin sheet metal without deforming the piece. • Ideal for automated applications. • Specifically for use in the stamping and welding sectors. Flat Suction Cups ...
COVAL
Diameter: 25 mm - 100 mm
... sealing on all oblong 3/8 male suction cups. Materials The COVAL COFC series vacuum cups are made out of elastomer and fibreglass reinforced plastic. These materials guarantee long ...
COVAL
Diameter: 8 mm - 75 mm
... flat suction cups are specially recommended for handling flat, rigid, smooth products. • high tensile force • high resistance to lateral forces allows vertical handling of products ...
COVAL
Diameter: 122 mm
Length: 315 mm
Width: 165 mm
... Overview
The Double
Suction
Cup HVC05 is a manual
suction lifter designed for
handling smooth, non-porous materials such as glass, tiles, plastic, metal and polished stone. ...
Length: 380 mm
Width: 80 mm
... AVPP03
Vacuum Pump for consistent
suction control and repeatable results.
Note
Delivered as a complete kit: two tools (left and right) plus the AVPP03
Vacuum Pump included.
Key ...
Working temperature: 0 °C - 40 °C
Weight of the suction cup : 0.4, 1.4 kg
... electric vacuum suction cup is an electrically driven end-effector based on the principle of vacuum adsorption. It uses a built-in vacuum pump to generate negative pressure ...

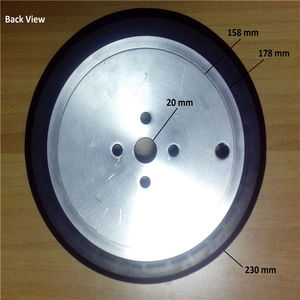

Diameter: min 230.0 cm
Diameter: 190 cm - 290 cm
... new vacuum cups have been designed and manufactured to safely grip even the most difficult and irregular packages. Made of anodised aluminium and equipped with a slotted plate inside them to allow flexible containers ...
Weight of the suction cup : min 0.8 kg
... new vacuum cups have been designed and manufactured to safely grip even the most difficult and irregular packages. Made of anodised aluminium and equipped with a slotted plate inside them to allow flexible containers ...
Diameter: 15 mm - 40 mm
Height: 10 mm - 35.6 mm
... ). You can simply push the SPK suction cup onto the adapter or vacuum ejector. The vacuum ejector SV turns compressed air into vacuum air. Suction and release take place ...
... Our vacuum suction cups constitute 4 series of soft vacuum pads, which are developed for fast and reliable handling in various areas of food processing and manufacturing ...
Gripwiq ApS
Diameter: 2 mm - 30 mm
Height: 8 mm - 15 mm
Working temperature: -10 °C - 80 °C
... FLAT SUCTION CUP Ø10 NITRILE WITHOUT CONNECTOR Applications Flats products prehension Position accuracy Rigidity Matière Black Nitrile 55 sh Oil resistant temperature -10°c Ø +80°c ...
SAPELEM
... external sensor for checking that the parts have been gripped by the EOAT. Vacuum cups normally fall into three categories: Flat vacuum cups Bellow vacuum cups Oval ...
Diameter: 290 mm
Height: 55 mm
Working temperature: -10 °C - 80 °C
... Discover our unique modular suction plate system, which offers a variety of seals in different materials and geometries. From flat suction plates without suspension bolts to variants with rigid suspension bolts, A-P joints ...
Diameter: 118 mm
Weight of the suction cup : 80, 100 kg
... Aluminium double suction cup: high power for lifting and handling. The aluminium double suction cup is a robust and versatile professional tool for lifting and handling ...
Diameter: 120 mm
... comfort for curved panes: The Veribor® 2- cup suction lifter with swivel heads convinces due to its large, non-slip gripping area and lies perfectly in your hand. The two moveable swivel heads are ideal for handling ...
Bohle AG
Diameter: 120 mm
... curved smooth, nonporous Operating procedure: 1.Press the pump to creat the vacuum. If the red line is in, vacuum is enough. 2. Lift the tab on the cup’s edge to release the vacuum. ...
TBM LIMITED
... each application, numerous load handling units are available. No matter if the good to be transported is uneven or unstable, whether sacks are not filled properly or cartons are provided with a hooping, the right load handling ...

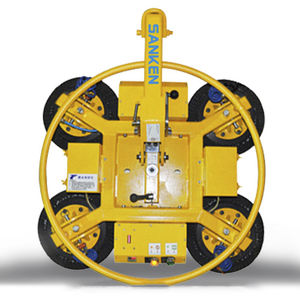

... Electric glass suction cup The electric suction cup produced by our company SANKEN GLASS has high working efficiency, easy movement, and can hold large-quality flat glass. It is ...
... This device uses the suction principle to ensure a secure and stable grip on a variety of materials and surfaces. The suction cup is particularly suitable for lifting delicate objects such as glass or ...
RHS
... Features ● Suitable for handling long and narrow workpieces. Applications ● Small narrow workpiece ● Electronics ...
AIRBEST Vacuum Technology CO., LTD.
Diameter: 15 mm - 50 mm
... Flat suction pads with cleats, VPF series Generic replacement suction cups – COVAL QUALITY – A certain number of our clients have sometimes used other suction cup brands ...
DAB Technology Pte. Ltd.
Diameter: 38 mm
... 38mm single bellows blue NBR suction cup with 1/4 FNPT fitting Style: Bellows Cleats: Yes Material: NBR Thread Size: 1/4" female Bellows: 1.5 Outside Diameter: 38.0mm Weight(lbs): .0355 Color: Blue ...
VacMotion
Diameter: 250 mm
Length: 250 mm
Width: 250 mm
... VM-70 - Electrically Operated Handling Suction Cup The VM-70 handling suction cup enables the handling of non-porous loads (glazed ...
Diameter: 30 mm
Height: 46, 24 mm
... sector for the handling of sheets of paper. The labyrinth moulded onto the support surface of the vacuum cup ensures a more effective grip on the product to be handled; in particular, the notches allow ...
Diameter: 40 mm - 125 mm
Height: 31, 36, 33, 48 mm
... Material Vacuum cup in hydrogenated nitrile rubber (HNBR). Aluminium support. Features The extreme flexibility of the gripping lip allows them to adapt to flat, concave, and convex surfaces, without any risk of ...
Height: 26 mm - 38.2 mm
... Material Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ). Aluminium support. Standard executions VVF-A: oil-proof rubber. VVF-N: natural rubber. VVF-S: silicone rubber. Features and ...
Diameter: 60 mm
Height: 22 mm
... delicate surfaces such as hardwood, vinyl and tile, as well as those needing castor cups for carpets to improve grip and stability. What Are Castor Cups? Castor cups act as a fixed base for office ...
Diameter: 50, 38, 35, 30 mm
This Polyvinyl chloride made product has natural color and ideal for demonstration and business uses and comes with eye, channel or metal clasp specially made for window exhibits.
Diameter: 30 mm - 125 mm
Height: 20.1 mm - 53 mm
Weight of the suction cup : 11.31 g - 141.01 g
... material, with special grooves and internal support structure. The suction cup and the joint are fixed by vulcanization. The suction cup has several connection forms to choose from. Product ...
Diameter: 75 mm
Weight of the suction cup : 0.1 kg
... practical suction cups from Secabo serve an even better way of working. This means that even smaller transfer press models remain exactly in place. Work even more precisely with this practical little ...

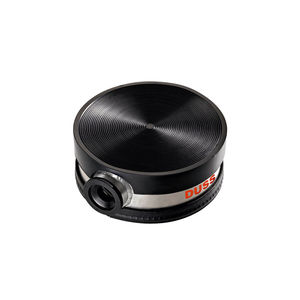

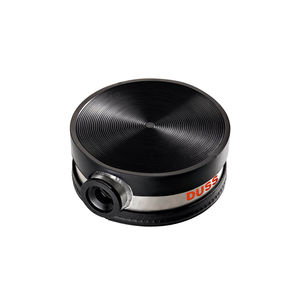

Diameter: 68 mm
... pollution of the immediate environment No time-consuming cleaning of the workplace Simple handling: connect the vacuum cleaner suction hose, the suction cup sucks itself onto ...
Duss, Friedrich, Maschinenfabrik GmbH & Co. KG
Diameter: 2.5 mm - 50 mm
... Perfect for handling workpieces with slanted suction surfaces The thrust of the cylinder or robot is not directly applied to the workpiece Features 1-The bellows structure conforms to the angles and heights of suction ...
