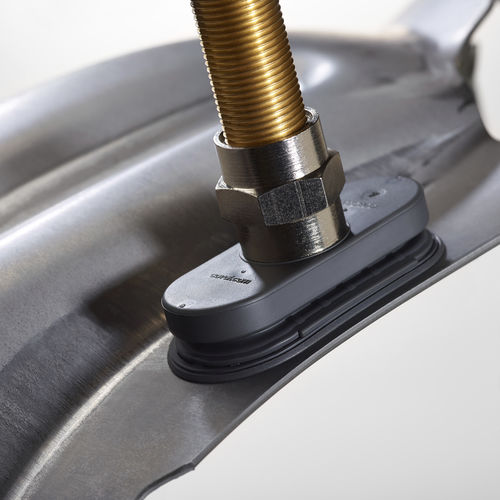

Flat suction cup COFC Series
ovalelastomerpolyamide

flat suction cup
flat suction cup
flat suction cup
Add to favorites
Compare this product


Characteristics

Type
flat, oval
Material
elastomer, polyamide, aluminum, fiberglass
Applications
for materials handling, multi-function, for gripping, for sheet metal, for the automotive industry, for heavy-duty applications, vacuum, for solar panels
Other characteristics
plastic, for marble and glass clamping, for glass chamfering
Diameter

Min.: 25 mm
(0.98 in)

Max.: 100 mm
(3.94 in)

Description

The COVAL COFC series high-performance suction cup range has been designed to meet the requirements of the automotive industry. The improved characteristics of the C series range optimize production tools in all spheres of activity. • A full range of dimensions to meet every requirement. • Non-slip cleats ensure optimum positioning on oily sheet metal. • Structured suction cups for gripping thin sheet metal without deforming the piece. • Ideal for automated applications. • Specifically for use in the stamping and welding sectors. Main Advantages • Extreme resistance to slipping. • Gripping thin sheet metal without deforming the piece, thanks to the central cleats. • Elastomer and glass-fibre reinforced plastic design to avoid any risk of damaging costly equipment and to facilitate recycling. • Double tightening: 2 wrenches of 22mm and 1 hex key of 6mm or 8mm. • Airtight fittings using sealing on all oblong 3/8 male suction cups. Materials The COVAL COFC series vacuum cups are made out of elastomer and fibreglass reinforced plastic. These materials guarantee long life expectancy to COVAL's C series suction cups, high resistance to oils and heat resistance up to 100°C. This approach helps to avoid any risk of deterioration of expensive production equipment and facilitates the recycling of suction cups. Materials The COVAL COFC series vacuum cups are made out of elastomer and fibreglass reinforced plastic. These materials guarantee long life expectancy to COVAL's C series suction cups, high resistance to oils and heat resistance up to 100°C.
