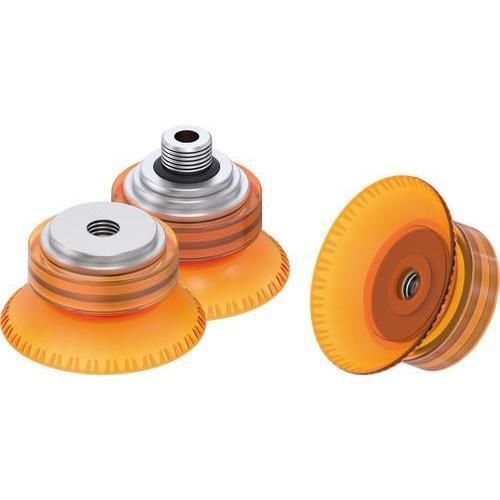

Bellows suction cup ZDF series

roundpolyurethane60 shore A

Description

• Optimum geometry

  • Designed for handling thin, oily and curved metal sheets and car body panels
  • Friction structure on the underside increases slip resistance between workpiece and vacuum suction cup
  • Durable and resistant due to polyurethane material properties
• Application areas

  • Automotive bodywork handling
  • Glass handling
  • Wood and composite materials

Available variants
Installation size: ZDF25
ZDF25-PU | 25 mm | Polyurethane | 60 | Translucent orange | -
ZDF25-PU-14F | 25 mm | Polyurethane | 60 | Translucent orange | G1/4 internal
ZDF25-PU-18F | 25 mm | Polyurethane | 60 | Translucent orange | G1/8 internal
ZDF25-PU-M10M | 25 mm | Polyurethane | 60 | Translucent orange | M10 external

Installation size: ZDF30
ZDF30-PU | 30 mm | Polyurethane | 60 | Translucent orange | -
ZDF30-PU-14F | 30 mm | Polyurethane | 60 | Translucent orange | G1/4 internal
ZDF30-PU-14M | 30 mm | Polyurethane | 60 | Translucent orange | G1/4 external
ZDF30-PU-18F | 30 mm | Polyurethane | 60 | Translucent orange | G1/8 internal
ZDF30-PU-M10M | 30 mm | Polyurethane | 60 | Translucent orange | M10 external

Installation size: ZDF40
ZDF40-PU | 40 mm | Polyurethane | 60 | Translucent orange | -
ZDF40-PU-14F | 40 mm | Polyurethane | 60 | Translucent orange | G1/4 internal
ZDF40-PU-14M | 40 mm | Polyurethane | 60 | Translucent orange | G1/4 external
ZDF40-PU-18F | 40 mm | Polyurethane | 60 | Translucent orange | G1/8 internal
ZDF40-PU-M10M | 40 mm | Polyurethane | 60 | Translucent orange | M10 external

Installation size: ZDF50
ZDF50-PU | 50 mm | Polyurethane | 60 | Translucent orange | -
ZDF50-PU-14F | 50 mm | Polyurethane | 60 | Translucent orange | G1/4 internal
ZDF50-PU-14M | 50 mm | Polyurethane | 60 | Translucent orange | G1/4 external
ZDF50-PU-18F | 50 mm | Polyurethane | 60 | Translucent orange | G1/8 internal
ZDF50-PU-38F | 50 mm | Polyurethane | 60 | Translucent orange | G3/8 internal
ZDF50-PU-38M | 50 mm | Polyurethane | 60 | Translucent orange | G3/8 external
ZDF50-PU-M10M | 50 mm | Polyurethane | 60 | Translucent orange | M10 external

Installation size: ZDF60
ZDF60-PU | 60 mm | Polyurethane | 60 | Translucent orange | -
ZDF60-PU-12F | 60 mm | Polyurethane | 60 | Translucent orange | G1/2 internal
ZDF60-PU-14F | 60 mm | Polyurethane | 60 | Translucent orange | G1/4 internal
ZDF60-PU-14M | 60 mm | Polyurethane | 60 | Translucent orange | G1/4 external
ZDF60-PU-18F | 60 mm | Polyurethane | 60 | Translucent orange | G1/8 internal
ZDF60-PU-38F | 60 mm | Polyurethane | 60 | Translucent orange | G3/8 internal
ZDF60-PU-38M | 60 mm | Polyurethane | 60 | Translucent orange | G3/8 external
ZDF60-PU-M10M | 60 mm | Polyurethane | 60 | Translucent orange | M10 external

Installation size: ZDF80
ZDF80-PU | 80 mm | Polyurethane | 60 | Translucent orange | -
ZDF80-PU-12F | 80 mm | Polyurethane | 60 | Translucent orange | G1/2 internal
ZDF80-PU-14F | 80 mm | Polyurethane | 60 | Translucent orange | G1/4 internal
ZDF80-PU-14M | 80 mm | Polyurethane | 60 | Translucent orange | G1/4 external
ZDF80-PU-18F | 80 mm | Polyurethane | 60 | Translucent orange | G1/8 internal
ZDF80-PU-38F | 80 mm | Polyurethane | 60 | Translucent orange | G3/8 internal
ZDF80-PU-38M | 80 mm | Polyurethane | 60 | Translucent orange | G3/8 external
ZDF80-PU-M10M | 80 mm | Polyurethane | 60 | Translucent orange | M10 external

Installation size: ZDF100
ZDF100-PU | 100 mm | Polyurethane | 60 | Translucent orange | -
ZDF100-PU-12F | 100 mm | Polyurethane | 60 | Translucent orange | G1/2 internal
ZDF100-PU-14F | 100 mm | Polyurethane | 60 | Translucent orange | G1/4 internal
ZDF100-PU-14M | 100 mm | Polyurethane | 60 | Translucent orange | G1/4 external
ZDF100-PU-18F | 100 mm | Polyurethane | 60 | Translucent orange | G1/8 internal
ZDF100-PU-38F | 100 mm | Polyurethane | 60 | Translucent orange | G3/8 internal
ZDF100-PU-38M | 100 mm | Polyurethane | 60 | Translucent orange | G3/8 external
ZDF100-PU-M10M | 100 mm | Polyurethane | 60 | Translucent orange | M10 external

Technical specifications

• Series: ZDF
• Design: Bell-shaped suction cup with friction underside
• Material: Polyurethane (PU)
• Shore hardness: 60
• Color: Translucent orange
• Available diameters: 25, 30, 40, 50, 60, 80, 100 mm
• Fixing thread options: none / G1/8 / G1/4 / G3/8 / G1/2 / M10 (internal or external depending on variant)
• Ideal for thin, oily and curved metal sheets, car body panels, glass, wood and composite materials
• Slip-resistant underside improves grip on oily or curved surfaces
