Flat suction cup ZU series
siliconeNBR60 shore A

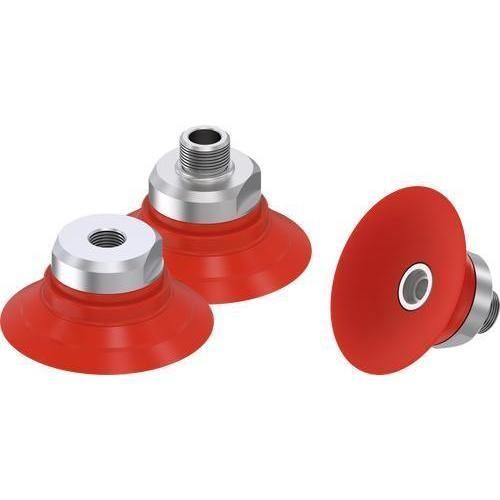

Flat suction cup - ZU series - ZIMMER GROUP - silicone / NBR / 60 shore A
Flat suction cup - ZU series - ZIMMER GROUP - silicone / NBR / 60 shore A
Add to favorites
Compare this product
Go to the ZIMMER GROUP website for more information

Characteristics

Type
flat
Material
NBR, silicone
Hardness
60 shore A
Applications
for materials handling, for the food industry, for the paper industry, for vacuum
Diameter

Max.: 80 mm
(3.15 in)

Min.: 1.5 mm
(0.06 in)

Description

Overview
  • Optimum geometry
    • Designed for universal vacuum handling of flat or slightly curved surfaces
  • Application areas
    • Semiconductors
    • Intralogistics
    • Paper and printing


Product range
  • Available diameters
    • 1.5, 2, 3, 4, 6, 8, 10, 15, 20, 25, 30 mm
  • Variant codes
    • -N (NBR), -S (Silicone), -WS (Silicone food-safe)
  • Thread / connection options
    • plain (no thread), M2.5 external, M5 external, M5 internal - G1/8 external, G1/8 internal, G1/4 external, G3/8 external (depending on size)


Selection and ordering
  • Choose material according to application: NBR for general industrial handling, Silicone for delicate or temperature-sensitive parts, Silicone food-safe for food and pharma contact
  • Select diameter and thread based on mounting and part geometry; use the part number format (e.g. ZU20-WS-M5F18M) when ordering
  • Use G1/8 or M5 adapter variants for integration with standard vacuum ports where available


Technical specifications
  • Series name: ZU (flat suction cup)
  • Manufacturer / Brand: Zimmer Group
  • Materials available: NBR, Silicone, Silicone food-safe
  • Shore hardness options: 55 (Silicone), 60 (NBR)
  • Colors: Black (NBR), Red (Silicone), Translucent white (food-safe Silicone)
  • Typical applications: Semiconductors, Intralogistics, Paper and printing
