Bellows suction cup ZB series
circularsiliconePU

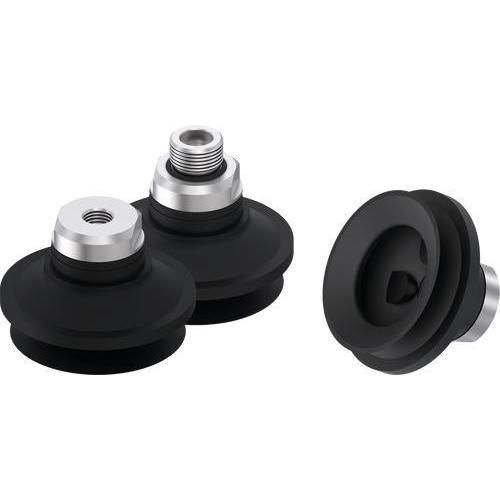

Bellows suction cup - ZB series - ZIMMER GROUP - circular / silicone / PU
Bellows suction cup - ZB series - ZIMMER GROUP - circular / silicone / PU
Add to favorites
Compare this product
Go to the ZIMMER GROUP website for more information

Characteristics

Type
bellows, circular
Material
NBR, silicone, PU
Hardness
60 shore A
Applications
for materials handling, for cardboard boxes, for the wood industry
Diameter

Min.: 5 mm
(0.2 in)

Max.: 150 mm
(5.91 in)

Description

Product overview
  • Optimum geometry
    • Designed for flat and convex surfaces
    • Universal handling application
    • Height compensation and damping via 1.5 bellows
  • Application areas
    • Packaging
    • Consumer goods
    • Intralogistics
    • Wood and composite materials


Available variants / Installation sizes (selection)
  • Typical order format: ZB<size>[-variant][-thread] (examples: ZB5-N, ZB10-WS-M5M, ZB17-N-18F)
  • Diameters (examples): 5, 6, 8, 10, 12, 15, 17, 20, 30 mm
  • Materials: NBR, Polyurethane (PU), Silicone, Silicone food-safe
  • Shore hardness: 55, 60
  • Colors: Black, Red, Translucent white, Translucent orange
  • Connection/thread options: M5 external/internal, G1/8" internal/external, G1/4" external, combinations depending on size


Technical specifications
  • Series: ZB series (bellows suction cups)
  • Geometry: bellows design with 1.5 folds for height compensation and damping
  • Surface compatibility: flat and convex surfaces
  • Typical applications: packaging, consumer goods, intralogistics, wood and composites
  • Manufacturer: Zimmer Group
