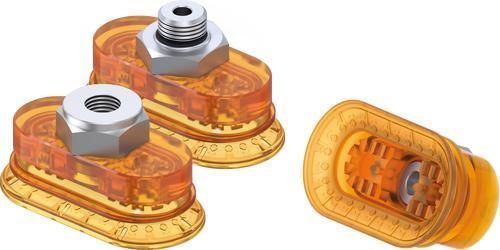

Bellows suction cup ZOBF series

rectangularpolyurethane60 shore A

Product overview

• Optimum geometry

  • Designed for handling smooth, oily and slightly convex surfaces.
  • Profiled underside increases friction between workpiece and suction cup for improved grip.
  • Made of polyurethane for high wear resistance and long service life.
• Application areas

  • Automotive industry
  • Glass handling
  • Wood and composite materials
  • Metalworking

Available variants (by installation size)
Table columns: Order-No. | Dimensions | Material | Shore hardness | Color | Fixing thread

Installation size: ZOBF30X60
ZOBF30X60-PU-14F | 30x60 [mm] | Polyurethane | 60 | Translucent orange | G1/4" internal
ZOBF30X60-PU-14M | 30x60 [mm] | Polyurethane | 60 | Translucent orange | G1/4" external
ZOBF30X60-PU-18F | 30x60 [mm] | Polyurethane | 60 | Translucent orange | G1/8" internal
ZOBF30X60-PU-18M | 30x60 [mm] | Polyurethane | 60 | Translucent orange | G1/8" external
ZOBF30X60-PU-38F | 30x60 [mm] | Polyurethane | 60 | Translucent orange | G3/8" internal
ZOBF30X60-PU-M10M | 30x60 [mm] | Polyurethane | 60 | Translucent orange | M10 external

Installation size: ZOBF40X80
ZOBF40X80-PU-12F | 40x80 [mm] | Polyurethane | 60 | Translucent orange | G1/2" internal
ZOBF40X80-PU-14F | 40x80 [mm] | Polyurethane | 60 | Translucent orange | G1/4" internal
ZOBF40X80-PU-14M | 40x80 [mm] | Polyurethane | 60 | Translucent orange | G1/4" external
ZOBF40X80-PU-18F | 40x80 [mm] | Polyurethane | 60 | Translucent orange | G1/8" internal
ZOBF40X80-PU-18M | 40x80 [mm] | Polyurethane | 60 | Translucent orange | G1/8" external
ZOBF40X80-PU-38F | 40x80 [mm] | Polyurethane | 60 | Translucent orange | G3/8" internal
ZOBF40X80-PU-M10M | 40x80 [mm] | Polyurethane | 60 | Translucent orange | M10 external

Installation size: ZOBF55X110
ZOBF55X110-PU-12F | 55x110 [mm] | Polyurethane | 60 | Translucent orange | G1/2" internal
ZOBF55X110-PU-14F | 55x110 [mm] | Polyurethane | 60 | Translucent orange | G1/4" internal
ZOBF55X110-PU-14M | 55x110 [mm] | Polyurethane | 60 | Translucent orange | G1/4" external
ZOBF55X110-PU-18F | 55x110 [mm] | Polyurethane | 60 | Translucent orange | G1/8" internal
ZOBF55X110-PU-18M | 55x110 [mm] | Polyurethane | 60 | Translucent orange | G1/8" external
ZOBF55X110-PU-38F | 55x110 [mm] | Polyurethane | 60 | Translucent orange | G3/8" internal
ZOBF55X110-PU-M10M | 55x110 [mm] | Polyurethane | 60 | Translucent orange | M10 external

Technical characteristics / specifications

• Series: ZOBF
• Type: Bellows suction cup (profiled underside for increased friction)
• Material: Polyurethane (PU)
• Shore hardness: 60
• Color: Translucent orange
• Typical sizes available: 30x60 mm, 40x80 mm, 55x110 mm
• Fixing thread options: G1/2", G1/4" (internal/external), G1/8" (internal/external), G3/8" (internal), M10 (external)
• Recommended for handling smooth, oily and slightly convex surfaces
• Profiled underside improves grip and process safety in vacuum handling applications
