Round suction cup ZFCF series
flatsiliconePU

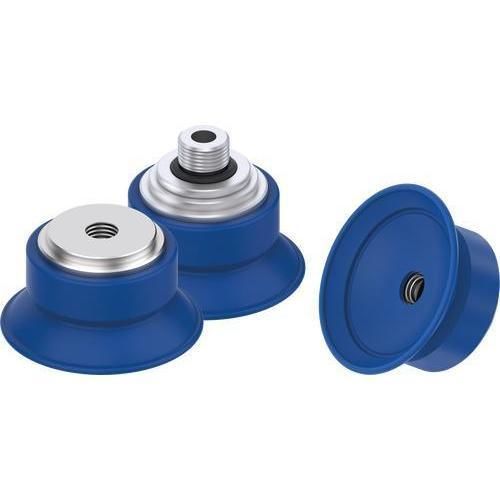

Round suction cup - ZFCF series - ZIMMER GROUP - flat / silicone / PU
Round suction cup - ZFCF series - ZIMMER GROUP - flat / silicone / PU
Add to favorites
Compare this product
Go to the ZIMMER GROUP website for more information

Characteristics

Type
flat, round
Material
NBR, silicone, PU
Hardness
60 shore A
Applications
for the automotive industry, glass, for the wood industry
Diameter

Max.: 125 mm
(4.92 in)

Min.: 30 mm
(1.18 in)

Description

Overview
    • Designed for thin, oily metal plates and car body panels
    • Profiled underside geometry to increase friction between workpiece and suction cup
    • Enables secure handling at high speeds without deforming sheet metal


Application areas
    • Automotive
    • Glass handling
    • Wood and composite materials


Variants and ordering
  • Installation sizes (diameters)
    • 30 mm
    • 40 mm
    • 50 mm
    • 60 mm
    • 70 mm
    • 80 mm
  • Materials
    • NBR (nitrile rubber)
    • Polyurethane (PU)
    • Silicone (SIL)
  • Typical Shore hardness / colors
    • 55 (Silicone) — red
    • 60 (NBR / PU) — blue (NBR) / translucent orange (PU)
  • Fixing thread / connection options
    • none
    • G1/2" internal
    • G1/4" internal / external
    • G1/8" internal
    • G3/8" internal / external
    • M10 external
  • Example references
    • ZFCF30-N, ZFCF40-PU-38M, ZFCF50-S-14F


Technical specifications
  • Series: ZFCF
  • Product type: Flat suction cup for handling thin metal sheets and body panels
  • Profiled underside geometry for increased friction
  • Available diameters: 30, 40, 50, 60, 70, 80 mm
  • Materials: NBR, Polyurethane (PU), Silicone
  • Typical Shore hardness: 55 (Silicone), 60 (NBR / PU)
  • Typical colors: Blue (NBR), Translucent orange (PU), Red (Silicone)
  • Fixing thread options: none, G1/2" in, G1/4" in/out, G1/8" in, G3/8" in/out, M10 out
  • Designed for high-speed automated handling without sheet deformation
