Bellows suction cup ZBU series
siliconePUNBR

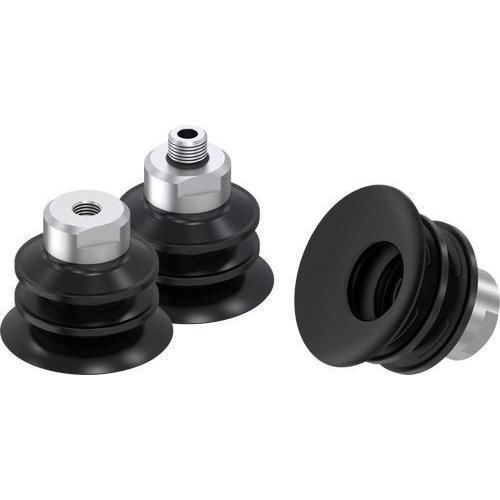

Bellows suction cup - ZBU series - ZIMMER GROUP - silicone / PU / NBR
Bellows suction cup - ZBU series - ZIMMER GROUP - silicone / PU / NBR
Add to favorites
Compare this product
Go to the ZIMMER GROUP website for more information

Characteristics

Type
bellows
Material
NBR, silicone, PU
Hardness
60 shore A
Applications
for materials handling, for cardboard boxes
Diameter

35 mm, 45 mm, 55 mm
(1.38 in, 1.77 in, 2.17 in)

Description

Product name
  • Bellows suction cup — Series ZBU


Key features
  • Optimised geometry
    • Suitable for flat and convex surfaces
    • Universal handling use
    • Height compensation and damping provided by 2.5 folds
  • Application areas
    • Packaging
    • Consumer goods
    • Intralogistics


Product variants / installation sizes
  • Installation sizes: ZBU35, ZBU45, ZBU55
  • Multiple product codes per size (examples): ZBU35-N, ZBU35-PU, ZBU35-S, ZBU35-WS; equivalent codes exist for ZBU45 and ZBU55
  • Thread options vary by code: no thread / G1/8" internal / G1/8" external / G1/4" external / G3/8" external


Notes
  • Variants differ by material (NBR / Polyurethane / Silicone / Silicone food-safe), Shore hardness (55 / 60), color and fixing thread
  • Designed for reliable pick-up on flat and slightly convex parts in packaging, consumer goods and intralogistics


Technical specifications
  • Series designation: ZBU series
  • Product type: Bellows suction cup
  • Installation sizes: ZBU35, ZBU45, ZBU55
  • Nominal diameters: 35 mm, 45 mm, 55 mm
  • Materials: NBR (nitrile rubber), Polyurethane (PU), Silicone, Silicone food-safe
  • Shore hardness options: 55, 60
  • Colors: Black, Translucent orange, Red, Translucent white
  • Fixing thread options: none / G1/8" internal / G1/8" external / G1/4" external / G3/8" external
  • Functional features: height compensation, damping (2.5 folds)
  • Typical applications: Packaging, Consumer goods, Intralogistics
