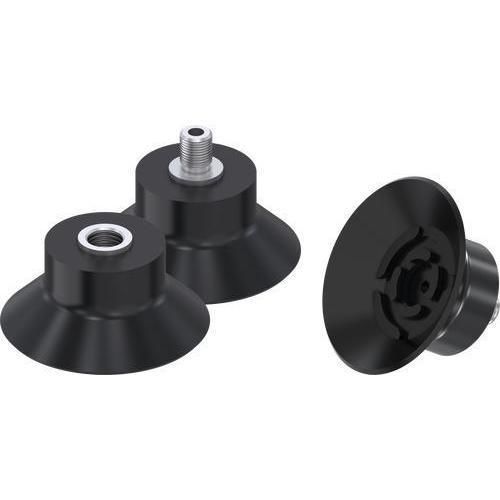

Bellows suction cup ZD series

roundsiliconePU

Product name
Bell-shaped suction cup Series ZD

Key features

• Optimized geometry

  • For irregular and convex surfaces
  • Vibration-free, secure handling of workpieces
• Material and hardness options

  • NBR, Polyurethane (PU), Silicone, food-safe Silicone
  • Shore hardness: 55 (typ. silicone), 60 (typ. NBR/PU)
• Thread and mounting

  • Internal G-threads (G1/8, G1/4, G1/2, G3/8) or external metric threads (M8, M10)

Application areas

• Metal
• Wood and composite materials
• Intralogistics and automated handling

Product variants (overview)
Columns: Order-No. | Diameter [mm] | Material | Shore | Color | Fixing thread
Examples: ZD30-N-18F | 30 | NBR | 60 | Black | G1/8 internal; ZD40-PU-M10M | 40 | Polyurethane | 60 | Translucent orange | M10 external; ZD50-S-18F | 50 | Silicone | 55 | Red | G1/8 internal; ZD60-WS-M10M | 60 | Silicone food-safe | 55 | Translucent white | M10 external; ZD70-PU-18F | 70 | Polyurethane | 60 | Translucent orange | G1/8 internal; ZD85-N-12F | 85 | NBR | 60 | Black | G1/2 internal; ZD90F-PU-12F | 90 | Polyurethane | 60 | Translucent orange | G1/2 internal

Notes

• Variants differ by fixing thread (internal G-threads or external metric threads) and material.
• Shore hardness options: 55 and 60 depending on material.

Technical specifications

• Series: ZD series
• Product type: Bell-shaped suction cup
• Installation sizes: ZD30, ZD40, ZD50, ZD60, ZD70, ZD85, ZD90
• Diameters: 30–90 mm
• Materials: NBR, PU, Silicone, food-safe Silicone
• Shore hardness: 55, 60
• Fixing threads: G1/8, G1/4, G3/8, G1/2 internal; M8, M10 external
• Applications: irregular/convex surfaces, metal, wood/composites, intralogistics
