Flat suction cup ZOU series
siliconeNBR60 shore A

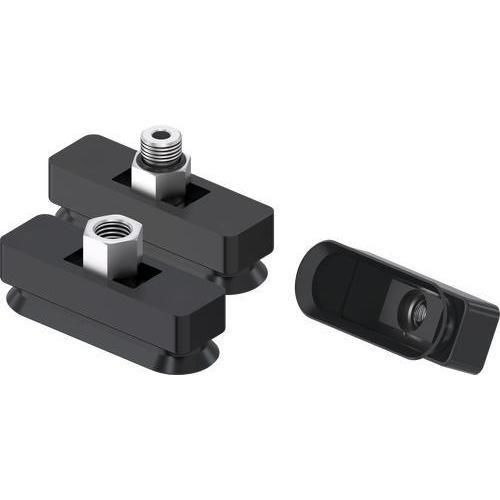

Flat suction cup - ZOU series - ZIMMER GROUP - silicone / NBR / 60 shore A
Flat suction cup - ZOU series - ZIMMER GROUP - silicone / NBR / 60 shore A
Add to favorites
Compare this product
Go to the ZIMMER GROUP website for more information

Characteristics

Type
flat
Material
NBR, silicone
Hardness
60 shore A
Applications
handling, for sheet metal, for vacuum
Other characteristics
silicone
Length

Max.: 20 mm
(0.79 in)

Min.: 4 mm
(0.16 in)

Width

10 mm, 20 mm, 30 mm, 45 mm, 60 mm
(0.39 in, 0.79 in, 1.18 in, 1.77 in, 2.36 in)

Description

Product overview
  • Optimum geometry
    • Universal use for vacuum handling and pick-and-place applications
  • Application areas
    • Electronics
    • Metal


Available variants
  • Installation sizes: 4x10, 4x20, 6x10, 6x20, 8x20, 8x30, 10x30, 15x45, 20x60 mm
  • Materials and hardness: NBR (Shore 60), Silicone (Shore 55), Food-grade silicone (Shore 55)
  • Thread options: none, M5 internal, M5 external, G1/8 internal, G1/8 external
  • Colors: Black, Red, Translucent white


Typical order codes (examples)
  • ZOU4X10-N — 4x10 mm, NBR, 60, Black
  • ZOU8X20-S-M5F — 8x20 mm, Silicone, 55, Red, M5 internal
  • ZOU20X60-WS-18M — 20x60 mm, Silicone food-safe, 55, Translucent white, G1/8 external


Technical specifications
  • Series: ZOU
  • Product type: Flat suction cup
  • Materials available: NBR, Silicone, Silicone food-safe
  • Shore hardness options: 55, 60
  • Dimensions / installation sizes: see list above (mm)
  • Fixing thread options: none, M5 internal/external, G1/8 internal/external
  • Typical applications: Vacuum handling in electronics and metalworking
