Bellows suction cup ZBX series

polyurethane60 shore Afor gripping

Product overview

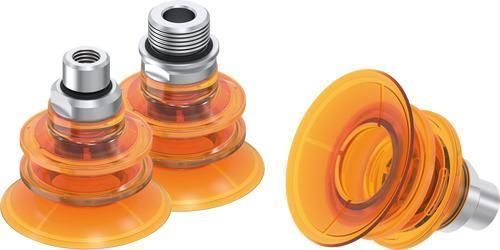

Bellows suction cup Series ZBX designed for reliable handling with integrated height compensation and damping; suitable for flat and convex surfaces and for universal use in automated vacuum gripping systems.

Optimum geometry

• For flat and convex surfaces
• Universal application
• Height compensation and damping via 2.5 folds
• Profile structure on the underside increases friction between workpiece and suction cup

Application areas

• Packaging
• Consumer goods
• Intralogistics

Installation size: ZBX35
Order-No. | Diameter | Material | Shore hardness | Color | Fixing thread
ZBX35-PU | 35 mm | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBX35-PU-00-F | 35 mm | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBX35-PU-14M | 35 mm | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBX35-PU-18F | 35 mm | Polyurethane | 60 | Translucent orange | G1/8" internal
ZBX35-PU-18F-M | 35 mm | Polyurethane | 60 | Translucent orange | G1/8" internal
ZBX35-PU-18M | 35 mm | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBX35-PU-38M | 35 mm | Polyurethane | 60 | Translucent orange | (no thread specified)

Installation size: ZBX45
Order-No. | Diameter | Material | Shore hardness | Color | Fixing thread
ZBX45-PU | 45 mm | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBX45-PU-00-F | 45 mm | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBX45-PU-14M | 45 mm | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBX45-PU-14M-M | 45 mm | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBX45-PU-18F | 45 mm | Polyurethane | 60 | Translucent orange | G1/8" internal
ZBX45-PU-18F-M | 45 mm | Polyurethane | 60 | Translucent orange | G1/8" internal
ZBX45-PU-18M | 45 mm | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBX45-PU-38M | 45 mm | Polyurethane | 60 | Translucent orange | G3/8" external

Installation size: ZBX55
Order-No. | Diameter | Material | Shore hardness | Color | Fixing thread
ZBX55-PU | 55 mm | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBX55-PU-00-F | 55 mm | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBX55-PU-14M | 55 mm | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBX55-PU-14M-M | 55 mm | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBX55-PU-18F | 55 mm | Polyurethane | 60 | Translucent orange | G1/8" internal
ZBX55-PU-18F-M | 55 mm | Polyurethane | 60 | Translucent orange | G1/8" internal
ZBX55-PU-18M | 55 mm | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBX55-PU-38M | 55 mm | Polyurethane | 60 | Translucent orange | G3/8" external

Notes

• Material: Polyurethane
• Shore hardness: 60
• Color: Translucent orange
• Available diameters: 35 mm, 45 mm, 55 mm
• Fixing thread options (selected variants/filters): G1/4" external, G1/8" external, G1/8" internal, G3/8" external

Technical specifications

• Product type: Bellows suction cup
• Series: ZBX
• Height compensation and damping: 2.5 fold
• Profile structure underside: increases friction between workpiece and suction cup
• Suitable for: flat and convex surfaces
• Typical application areas: Packaging, Consumer goods, Intralogistics
• Material: Polyurethane
• Shore hardness: 60
• Color: Translucent orange
• Installation sizes: ZBX35, ZBX45, ZBX55
• Common fixing thread variants: G1/4", G1/8" (internal/external), G3/8"
