Bellows suction cup ZOC series
siliconeNBR60 shore A

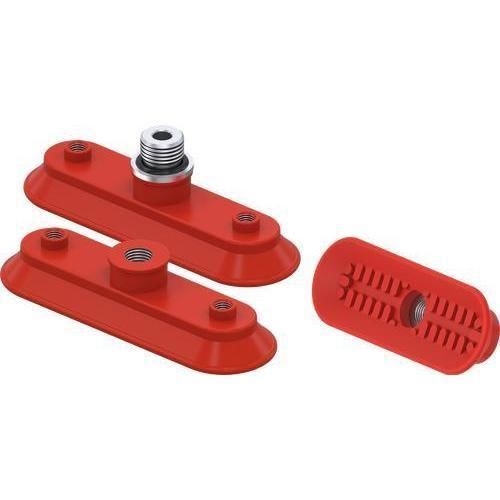

Bellows suction cup - ZOC series - ZIMMER GROUP - silicone / NBR / 60 shore A
Bellows suction cup - ZOC series - ZIMMER GROUP - silicone / NBR / 60 shore A
Add to favorites
Compare this product
Go to the ZIMMER GROUP website for more information

Characteristics

Type
bellows
Material
NBR, silicone
Hardness
60 shore A
Applications
for sheet metal, for the automotive industry, glass, for the wood industry
Length

11 mm, 35 mm, 60 mm
(0.43 in, 1.38 in, 2.36 in)

Width

11 mm, 23 mm, 90 mm, 140 mm, 180 mm
(0.43 in, 0.91 in, 3.54 in, 5.51 in, 7.09 in)

Description

Overview
  • Product: Bell-shaped suction cup, Series ZOC — designed for vacuum handling of smooth, flat and slightly convex surfaces
  • Geometry: Profile structure on the suction underside to increase friction between workpiece and suction cup


Application areas
  • Automotive
  • Glass
  • Wood and composite materials
  • Metal


Available variants (by installation size)
Installation size: ZOC11X23
Order-No. | Dimensions | Material | Shore hardness | Color | Fixing thread
ZOC11X23-N | 11x23 mm | NBR | 60 | Black |
ZOC11X23-S | 11x23 mm | Silicone | 55 | Red |
ZOC11X23-WS | 11x23 mm | Silicone food-safe | 55 | Translucent white |

Installation size: ZOC35X90
Order-No. | Dimensions | Material | Shore hardness | Color | Fixing thread
ZOC35X90-N-38F | 35x90 mm | NBR | 60 | Black | G3/8" internal
ZOC35X90-S-38F | 35x90 mm | Silicone | 55 | Red | G3/8" internal
ZOC35X90-WS-38F | 35x90 mm | Silicone food-safe | 55 | Translucent white | G3/8" internal

Installation size: ZOC35X110
Order-No. | Dimensions | Material | Shore hardness | Color | Fixing thread
ZOC35X110-N-38F | 35x110 mm | NBR | 60 | Black | G3/8" internal
ZOC35X110-S-38F | 35x110 mm | Silicone | 55 | Red | G3/8" internal

Installation size: ZOC60X140
Order-No. | Dimensions | Material | Shore hardness | Color | Fixing thread
ZOC60X140-N-38F | 60x140 mm | NBR | 60 | Black | G3/8" internal
ZOC60X140-S-38F | 60x140 mm | Silicone | 55 | Red | G3/8" internal
ZOC60X140-WS-38F | 60x140 mm | Silicone food-safe | 55 | Translucent white | G3/8" internal

Installation size: ZOC60X180
Order-No. | Dimensions | Material | Shore hardness | Color | Fixing thread
ZOC60X180-N-38F | 60x180 mm | NBR | 60 | Black | G3/8" internal
ZOC60X180-S-38F | 60x180 mm | Silicone | 55 | Red | G3/8" internal


Technical characteristics / specifications
  • Series: ZOC (bell-shaped suction cup)
  • Shape: Bell-shaped with profiled underside to increase friction
  • Intended surfaces: Smooth, flat and slightly convex surfaces
  • Materials available: NBR; Silicone; Silicone (food-safe)
  • Shore hardness options: 55 (Silicone), 60 (NBR)
  • Colors: Black, Red, Translucent white (food-safe)
  • Fixing thread (for larger sizes / specific variants): G3/8" internal
  • Installation sizes shown: 11x23, 35x90, 35x110, 60x140, 60x180 mm
