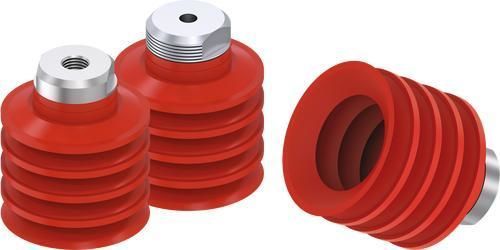

Bellows suction cup ZBL series

siliconeNBR60 shore A

Overview

• Optimum geometry

  • For handling flexible workpieces
  • Height compensation and damping function with up to 4.5 folds
• Application areas

  • Packaging
  • Consumer goods
  • Intralogistics

Product variants (grouped by installation size)

Installation size: ZBL10
Order-No. | Diameter [mm] | Material | Shore hardness | Color | Fixing thread
ZBL10-N | 10 | NBR | 60 | Black | —
ZBL10-N-M5M | 10 | NBR | 60 | Black | M5 external
ZBL10-S | 10 | Silicone | 55 | Red | —
ZBL10-WS | 10 | Silicone food-safe | 55 | Translucent white | —

Installation size: ZBL15
Order-No. | Diameter [mm] | Material | Shore hardness | Color | Fixing thread
ZBL15-N | 15 | NBR | 60 | Black | —
ZBL15-N-M5M | 15 | NBR | 60 | Black | M5 external
ZBL15-S | 15 | Silicone | 55 | Red | —
ZBL15-WS | 15 | Silicone food-safe | 55 | Translucent white | —

Installation size: ZBL20
Order-No. | Diameter [mm] | Material | Shore hardness | Color | Fixing thread
ZBL20-N | 20 | NBR | 60 | Black | —
ZBL20-N-18F | 20 | NBR | 60 | Black | G1/8" internal
ZBL20-N-M5F18M | 20 | NBR | 60 | Black | M5 internal - G1/8" external
ZBL20-S | 20 | Silicone | 55 | Red | —
ZBL20-WS | 20 | Silicone food-safe | 55 | Translucent white | —

Installation size: ZBL30
Order-No. | Diameter [mm] | Material | Shore hardness | Color | Fixing thread
ZBL30-N | 30 | NBR | 60 | Black | —
ZBL30-N-14M | 30 | NBR | 60 | Black | G1/4" external
ZBL30-N-18F | 30 | NBR | 60 | Black | G1/8" internal
ZBL30-S | 30 | Silicone | 55 | Red | —
ZBL30-WS | 30 | Silicone food-safe | 55 | Translucent white | —

Installation size: ZBL35
Order-No. | Diameter [mm] | Material | Shore hardness | Color | Fixing thread
ZBL35M-N | 35 | NBR | 60 | Black | —
ZBL35M-S | 35 | Silicone | 55 | Red | —
ZBL35M-WS | 35 | Silicone food-safe | 55 | Translucent white | —

Installation size: ZBL40
Order-No. | Diameter [mm] | Material | Shore hardness | Color | Fixing thread
ZBL40-N / ZBL40B-N | 40 | NBR | 60 | Black | —
ZBL40-N-14M | 40 | NBR | 60 | Black | G1/4" external
ZBL40-S / ZBL40B-S | 40 | Silicone | 55 | Red | —
ZBL40-WS | 40 | Silicone food-safe | 55 | Translucent white | —

Installation size: ZBL50
Order-No. | Diameter [mm] | Material | Shore hardness | Color | Fixing thread
ZBL50-N | 50 | NBR | 60 | Black | —
ZBL50-N-14M | 50 | NBR | 60 | Black | G1/4" external
ZBL50-N-18F | 50 | NBR | 60 | Black | G1/8" internal
ZBL50-S | 50 | Silicone | 55 | Red | —
ZBL50-WS | 50 | Silicone food-safe | 55 | Translucent white | —

Notes on variant notation

• Suffixes indicate material and thread/connection variants: -N = NBR, -S = Silicone, -WS = Silicone food-safe.
• Thread options: M5 (internal/external), G1/8" (internal/external), G1/4" external, G3/8" external and combinations (e.g. M5 internal - G1/8" external).

Technical specifications / key data

• Series: ZBL (bellows suction cup)
• Product type: bellows suction cup for handling flexible workpieces
• Main functions: height compensation and damping (up to 4.5 folds)
• Typical applications: packaging, consumer goods, intralogistics
• Available installation sizes: ZBL10, ZBL15, ZBL20, ZBL30, ZBL35, ZBL40, ZBL50
• Available diameters: 10, 15, 20, 30, 35, 40, 50 mm
• Materials: NBR, Silicone, Silicone food-safe
• Shore hardness: 55, 60
• Colors: Black (NBR), Red (Silicone), Translucent white (Silicone food-safe)
