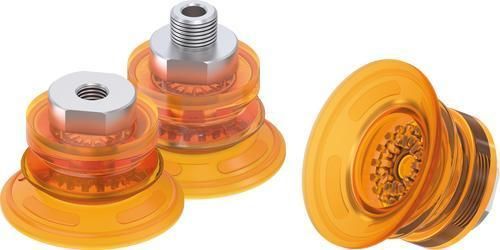

Bellows suction cup ZBF series

siliconepolyurethaneNBR

Overview

• Optimum geometry

  • For thin, oily and bent metal plates and car body panels
  • Profile structure on the underside of the suction cup for increased friction between the workpiece and vacuum suction cup
  • Height compensation and damping function with 1.5 folds
• Application areas

  • Automotive
  • Glass
  • Wood and composite materials
  • Metal

Product variants - Installation size: ZBF25
Order-No. | Diameter | Material | Shore hardness | Color | Fixing thread
ZBF25-N | 25 [mm] | NBR | 60 | Blue | (no thread specified)
ZBF25-N-14F | 25 [mm] | NBR | 60 | Blue | G1/4" internal
ZBF25-N-14M | 25 [mm] | NBR | 60 | Blue | G1/4" external
ZBF25-N-18F | 25 [mm] | NBR | 60 | Blue | G1/8" internal
ZBF25-N-M10M | 25 [mm] | NBR | 60 | Blue | M10 external
ZBF25-PU | 25 [mm] | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBF25-PU-14F | 25 [mm] | Polyurethane | 60 | Translucent orange | G1/4" internal
ZBF25-PU-14M | 25 [mm] | Polyurethane | 60 | Translucent orange | G1/4" external
ZBF25-PU-18F | 25 [mm] | Polyurethane | 60 | Translucent orange | G1/8" internal
ZBF25-PU-M10M | 25 [mm] | Polyurethane | 60 | Translucent orange | M10 external
ZBF25-S-14F | 25 [mm] | Silicone | 55 | Red | G1/4" internal
ZBF25-S-14M | 25 [mm] | Silicone | 55 | Red | G1/4" external
ZBF25-S-18F | 25 [mm] | Silicone | 55 | Red | G1/8" internal
ZBF25-S-M10M | 25 [mm] | Silicone | 55 | Red | M10 external

Product variants - Installation size: ZBF30
Order-No. | Diameter | Material | Shore hardness | Color | Fixing thread
ZBF30-N | 30 [mm] | NBR | 60 | Blue | (no thread specified)
ZBF30-N-14F | 30 [mm] | NBR | 60 | Blue | G1/4" internal
ZBF30-N-14M | 30 [mm] | NBR | 60 | Blue | G1/4" external
ZBF30-N-18F | 30 [mm] | NBR | 60 | Blue | G1/8" internal
ZBF30-N-M10M | 30 [mm] | NBR | 60 | Blue | M10 external
ZBF30-PU | 30 [mm] | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBF30-PU-14F | 30 [mm] | Polyurethane | 60 | Translucent orange | G1/4" internal
ZBF30-PU-14M | 30 [mm] | Polyurethane | 60 | Translucent orange | G1/4" external
ZBF30-PU-18F | 30 [mm] | Polyurethane | 60 | Translucent orange | G1/8" internal
ZBF30-PU-M10M | 30 [mm] | Polyurethane | 60 | Translucent orange | M10 external
ZBF30-S-14F | 30 [mm] | Silicone | 55 | Red | G1/4" internal
ZBF30-S-14M | 30 [mm] | Silicone | 55 | Red | G1/4" external
ZBF30-S-18F | 30 [mm] | Silicone | 55 | Red | G1/8" internal
ZBF30-S-M10M | 30 [mm] | Silicone | 55 | Red | M10 external

Product variants - Installation size: ZBF40
Order-No. | Diameter | Material | Shore hardness | Color | Fixing thread
ZBF40-N | 40 [mm] | NBR | 60 | Blue | (no thread specified)
ZBF40-N-14F | 40 [mm] | NBR | 60 | Blue | G1/4" internal
ZBF40-N-14M | 40 [mm] | NBR | 60 | Blue | G1/4" external
ZBF40-N-18F | 40 [mm] | NBR | 60 | Blue | G1/8" internal
ZBF40-N-M10M | 40 [mm] | NBR | 60 | Blue | M10 external
ZBF40-PU | 40 [mm] | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBF40-PU-14F | 40 [mm] | Polyurethane | 60 | Translucent orange | G1/4" internal
ZBF40-PU-14M | 40 [mm] | Polyurethane | 60 | Translucent orange | G1/4" external
ZBF40-PU-18F | 40 [mm] | Polyurethane | 60 | Translucent orange | G1/8" internal
ZBF40-PU-M10M | 40 [mm] | Polyurethane | 60 | Translucent orange | M10 external
ZBF40-S-14F | 40 [mm] | Silicone | 55 | Red | G1/4" internal
ZBF40-S-14M | 40 [mm] | Silicone | 55 | Red | G1/4" external
ZBF40-S-18F | 40 [mm] | Silicone | 55 | Red | G1/8" internal
ZBF40-S-M10M | 40 [mm] | Silicone | 55 | Red | M10 external

Product variants - Installation size: ZBF50
Order-No. | Diameter | Material | Shore hardness | Color | Fixing thread
ZBF50-N | 50 [mm] | NBR | 60 | Blue | (no thread specified)
ZBF50-N-14F | 50 [mm] | NBR | 60 | Blue | G1/4" internal
ZBF50-N-14M | 50 [mm] | NBR | 60 | Blue | G1/4" external
ZBF50-N-18F | 50 [mm] | NBR | 60 | Blue | G1/8" internal
ZBF50-N-38F | 50 [mm] | NBR | 60 | Blue | G3/8" internal
ZBF50-N-38M | 50 [mm] | NBR | 60 | Blue | G3/8" external
ZBF50-N-M10M | 50 [mm] | NBR | 60 | Blue | M10 external
ZBF50-PU | 50 [mm] | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBF50-PU-14F | 50 [mm] | Polyurethane | 60 | Translucent orange | G1/4" internal
ZBF50-PU-14M | 50 [mm] | Polyurethane | 60 | Translucent orange | G1/4" external
ZBF50-PU-18F | 50 [mm] | Polyurethane | 60 | Translucent orange | G1/8" internal
ZBF50-PU-18M | 50 [mm] | Polyurethane | 60 | Translucent orange | G1/8" external
ZBF50-PU-38F | 50 [mm] | Polyurethane | 60 | Translucent orange | G3/8" internal
ZBF50-PU-38M | 50 [mm] | Polyurethane | 60 | Translucent orange | G3/8" external
ZBF50-PU-M10M | 50 [mm] | Polyurethane | 60 | Translucent orange | M10 external
ZBF50-S | 50 [mm] | Silicone | 55 | Red | (no thread specified)
ZBF50-S-14F | 50 [mm] | Silicone | 55 | Red | G1/4" internal
ZBF50-S-14M | 50 [mm] | Silicone | 55 | Red | G1/4" external
ZBF50-S-18F | 50 [mm] | Silicone | 55 | Red | G1/8" internal
ZBF50-S-18M | 50 [mm] | Silicone | 55 | Red | G1/8" external
ZBF50-S-38F | 50 [mm] | Silicone | 55 | Red | G3/8" internal
ZBF50-S-38M | 50 [mm] | Silicone | 55 | Red | G3/8" external
ZBF50-S-M10M | 50 [mm] | Silicone | 55 | Red | M10 external

Product variants - Installation size: ZBF60
Order-No. | Diameter | Material | Shore hardness | Color | Fixing thread
ZBF60-N | 60 [mm] | NBR | 60 | Blue | (no thread specified)
ZBF60-N-12F | 60 [mm] | NBR | 60 | Blue | G1/2" internal
ZBF60-N-14F | 60 [mm] | NBR | 60 | Blue | G1/4" internal
ZBF60-N-14M | 60 [mm] | NBR | 60 | Blue | G1/4" external
ZBF60-N-18F | 60 [mm] | NBR | 60 | Blue | G1/8" internal
ZBF60-N-18M | 60 [mm] | NBR | 60 | Blue | G1/8" external
ZBF60-N-38F | 60 [mm] | NBR | 60 | Blue | G3/8" internal
ZBF60-N-38M | 60 [mm] | NBR | 60 | Blue | G3/8" external
ZBF60-N-M10M | 60 [mm] | NBR | 60 | Blue | M10 external
ZBF60-PU | 60 [mm] | Polyurethane | 60 | Translucent orange | (no thread specified)
ZBF60-PU-12F | 60 [mm] | Polyurethane | 60 | Translucent orange | G1/2" internal
ZBF60-PU-14F | 60 [mm] | Polyurethane | 60 | Translucent orange | G1/4" internal
ZBF60-PU-14M | 60 [mm] | Polyurethane | 60 | Translucent orange | G1/4" external
ZBF60-PU-18F | 60 [mm] | Polyurethane | 60 | Translucent orange | G1/8" internal
ZBF60-PU-18M | 60 [mm] | Polyurethane | 60 | Translucent orange | G1/8" external
ZBF60-PU-38F | 60 [mm] | Polyurethane | 60 | Translucent orange | G3/8" internal
ZBF60-PU-38M | 60 [mm] | Polyurethane | 60 | Translucent orange | G3/8" external
ZBF60-PU-M10M | 60 [mm] | Polyurethane | 60 | Translucent orange | M10 external
ZBF60-S | 60 [mm] | Silicone | 55 | Red | (no thread specified)
ZBF60-S-12F | 60 [mm] | Silicone | 55 | Red | G1/2" internal
ZBF60-S-14F | 60 [mm] | Silicone | 55 | Red | G1/4" internal
ZBF60-S-14M | 60 [mm] | Silicone | 55 | Red | G1/4" external
ZBF60-S-18F | 60 [mm] | Silicone | 55 | Red | G1/8" internal
ZBF60-S-18M | 60 [mm] | Silicone | 55 | Red | G1/8" external
ZBF60-S-38F | 60 [mm] | Silicone | 55 | Red | G3/8" internal
ZBF60-S-38M | 60 [mm] | Silicone | 55 | Red | G3/8" external
ZBF60-S-M10M | 60 [mm] | Silicone | 55 | Red | M10 external

caractéristiques / spécifications techniques

• Series name: Series ZBF
• Function: Bellows suction cup with profile underside for increased friction, height compensation and damping (1.5 folds)
• Materials available: NBR (nitrile rubber), Polyurethane (PU), Silicone
• Diameters available: 25 mm, 30 mm, 40 mm, 50 mm, 60 mm
• Shore hardness options: 55 (Silicone), 60 (NBR / PU)
• Colors: Blue (NBR), Translucent orange (PU), Red (Silicone)
• Fixing thread options: various (examples: G1/8", G1/4" internal/external, G3/8" internal/external, G1/2" internal, M10 external) depending on variant
• Intended application areas: Automotive, Glass, Wood & composite materials, Metal
