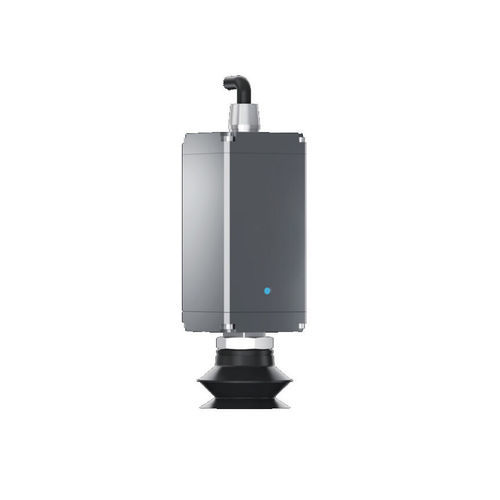

Square suction cup EVS01

vacuumfor grippinghandling

Product Introduction The robot electric vacuum suction cup is an electrically driven end-effector based on the principle of vacuum adsorption. It uses a built-in vacuum pump to generate negative pressure for object gripping, effectively replacing traditional manual handling methods. The core design integrates an intelligent control system and a multi-layer sealing structure, making it suitable for handling smooth or slightly rough surfaces such as tiles, stone slabs, and glass. Features - Easy to use, no external air supply required, reducing system complexity. - Programmable control with adjustable suction force and fast response time. - Interchangeable end effector; compatible with various suction cup types. - Independent dual-channel (A/B) control. - Simple installation and flexible deployment. Advantages - No external air supply required - Drop detection capability - Gripping status feedback - Vacuum release (break) function Specification Model: EVS01, ERS01, EVS08 - Vacuum Level: 10%-60% (EVS01), 60% (ERS01), 10%-70% (EVS08) - Max Flow Rate: 2.5 L/min (EVS01, ERS01), 10 L/min (EVS08) - Max Recommended Load: 1 kg (EVS01, ERS01), 8 kg (EVS08) - Fastest Adsorption Time*: 0.3 s (EVS01, EVS08), 0.4 s (ERS01) - Fastest Release Time*: 0.1 s (EVS01), 0.15 s (ERS01), 0.2 s (EVS08) - Rotation Angle: None (EVS01, EVS08), Infinite rotation (ERS01) - Rotational Position Accuracy: None (EVS01, EVS08), ±0.05° (ERS01) - Drop Detection: None (EVS01, EVS08), Supported (ERS01) - Rated Voltage: DC 24V±10% - Rated Current: 0.13 A (EVS01), 0.23 A (ERS01), 0.5 A (EVS08) - Peak Current: 0.3 A (EVS01), 2.5 A (ERS01), 3.8 A (EVS08) - Communication Protocol: ModbusRTU(RS485); Digital I/O (EVS01, EVS08), EtherCAT (ERS01) - Compliance Standards: CE, RoHS (EVS01, EVS08), Pending Certification (ERS01) - Protection Level: IP40 (EVS01, ERS01), IP54 (EVS08) - Operating Noise: <70dB - Unit Weight: 0.3 kg (EVS01), 0.4 kg (ERS01), 1.4 kg (EVS08) - Operating Environment: 0–40°C, ≤85% RH (EVS01, EVS08), 5–40°C, ≤85% RH (ERS01) * Adsorption and release times are measured under ideal laboratory conditions; actual performance may vary depending on suction cup size and application context. For reference only. Technical Specifications / Features - Electrically driven vacuum suction cup for robotic end-effectors - Built-in vacuum pump, no external air supply needed - Programmable control, adjustable suction force - Dual-channel (A/B) independent control - Drop detection and gripping status feedback (ERS01 model) - Vacuum release function - CE, RoHS compliance (EVS01, EVS08) - Protection level: IP40/IP54 - Operating noise: <70dB - Operating environment: 0–40°C (EVS01, EVS08), 5–40°C (ERS01), ≤85% RH
