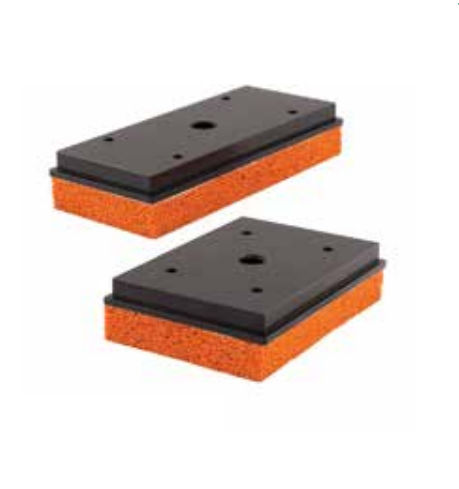

Rectangular suction cup 19VRN.G.1 series

rubberliftingfor gripping

Product description
Rectangular foam‑rubber suction cup manufactured from a special NR (natural rubber) foam compound. The material density and elasticity enable secure gripping on very rough and irregular surfaces while maintaining performance over repeated cycles. Designed for handling loads with coarse or highly irregular surfaces such as sawn, bush‑hammered or flamed marble, textured or ribbed sheets, brick, rough concrete elements and garden paving tiles. Not recommended for applications with lifting force parallel to the surface or for oily/lubricated surfaces.

Applications

• Stone & marble handling: marble slabs and bricks
• Rough-surfaced materials: sawn wood, textured sheets, bricks, rough concrete items
• Any application requiring large suction‑cup deformation to compensate surface irregularities

Stone & Marble
Suitable for the stone and marble processing industry, especially for lifting and moving marble slabs and blocks where conventional suction cups cannot seal on uneven faces.

Rough surface
Indicated for materials with pronounced surface irregularities. The foam rubber composition allows the cup to conform and maintain grip on sawn, flamed or bush‑hammered stone, ribbed sheets and similar substrates.

Technical specifications

• Material: NR (foam rubber) compound
• Density and elasticity designed for grip on very rough and irregular surfaces
• Elastic properties maintained after repeated working cycles
• Recommended surfaces: sawn, bush‑hammered or flamed marble; textured, non‑slip or ribbed/corrugated sheets; brick; rough concrete; garden paving tiles
• Limitations: not recommended for lifting forces parallel to the surface; not suitable for oily or lubricated surfaces
• Typical sectors: stone & marble processing, handling of rough-surfaced materials
• Attachments: 3D library (STEP) available (ZIP, 20.68 KB)
