3-jaw grippers

Stroke : 3, 4, 5 mm
Grip strength: 57, 124, 220 N

The MPTM manufactured by GIMATIC is a parallel electric gripper with a self-centering system and 3 T-slot style jaws for heavy loads. Its compact and minimal design is integrated with ...

The PN PINZE 2 or 3 jaws angular-acting grippers, manufactured by Gimatic, provide excellent efficiency and reliability due to the lack of driving components. These double ...

Stroke : 15, 5, 8, 12 mm
Grip strength: 585 N - 4,950 N

The SXT series from Gimatic are parallel-acting grippers that are integrated with 3 jaws and are available on double-acting style. Its compact, lightweight, minimal footprint design has ...

Stroke : 2.5 mm - 10 mm
Grip strength: 130 N - 1,450 N

... three-jaw gripper, with either internal or external clamping. Aluminum alloy body coated with surface hardening treatment; jaws made of wear-resistant coated steel. The jaw-guiding ...

Stroke : 6, 8, 4, 10, 5 mm
Grip strength: 310, 435, 840, 1,450 N

... three-jaw gripper, with either internal or external clamping. Aluminum alloy body coated with surface hardening treatment; jaws made of wear-resistant coated steel. The jaw-guiding ...

Small 3-finger centric gripper with base jaws guided on T-slots Field of application: for universal use in clean to slightly dirty working environments, especially suitable for ...

Stroke : 2 mm - 45 mm
Grip strength: 255 N - 57,300 N

Description Universal 3-finger centric gripper with high gripping force and maximum moments due to multi-tooth guidance Field of application multi- purpose thanks to a diverse range of accessories. ...

Stroke : 2.5 mm - 16 mm
Grip strength: 255 N - 7,990 N

Description Universal 3-finger centric gripper of the compact class with T-slot guidance and best cost-performance ratio Field of application Optimum standard solution for many fields of application. ...

Stroke : 4 mm - 13 mm
Grip strength: 68 N - 940 N

The CGC is a series of 3-finger centric grippers manufactured by Camozzi. It consists of the models CGC-50, CGC-64, CGC-80, CGC-100, and CGC-125. It has double-acting type of operation; an operating temperature ...

Stroke : 13, 3.5, 30, 20 mm
Grip strength: 2.5, 2, 20, 10 N

YAMAHAs electric gripper T type (three fingers type) is introduced that achieves the highly precise gripping control unique to the electric drive.

Stroke : 10 mm
Grip strength: 442.2 N

... Sturdy T-slot with hardened steel gibs for effective jaw guidance, precise handling and easy maintenance. Lever design for high-force transmission and jaw synchronization. Mounting from two ...

Stroke : 2 mm - 30 mm
Grip strength: 321 N - 28,029 N

QPG is a universal three-finger centric gripper featuring high repeatability and long service life, suitable for a wide range of industrial applications. Advantages Robust and lightweight housing made of hard-coated ...

Stroke : 3 mm - 35 mm
Grip strength: 321 N - 28,029 N

OPE is a universal three-finger parallel gripper featuring high reliability and long service life, suitable for a wide range of industrial applications. Advantages Robust, lightweight housing made of hard-coated ...

Stroke : 3, 6 mm
Grip strength: 650 N - 1,700 N

... torque support for using long gripper fingers thanks to elongated jaw guide Maximum flexibility thanks to versatile connection and fastening options Long service life and high reliability thanks to ...

Stroke : 4, 8 mm
Grip strength: 1,200 N - 3,250 N

... torque support for using long gripper fingers thanks to elongated jaw guide Maximum flexibility thanks to versatile connection and fastening options Long service life and high reliability thanks to ...

Stroke : 5, 10 mm
Grip strength: 2,000 N - 5,620 N

... torque support for using long gripper fingers thanks to elongated jaw guide Maximum flexibility thanks to versatile connection and fastening options Long service life and high reliability thanks to ...

Tube I.D. φ16, 25, 32, 40, 50, 63, 80, 100, 125 (mm). Through holes in body enable simple mounting.

Body specification: 50, 66, 80, 100, 125, 160, 200, 300. Compact design to ensure minimum interference while operating; robust T rail design, ensure accurate gripping.

Tube I.D. φ 16, 25, 32, 40, 50, 63, 80 mm. Opening / closing stroke move than twice the standard (MCHG2). Interchangeable with MCHG2 in mounting.

Grip strength: 69 N

Operating Pressure 5 bar Angolar Stroke 3x 120° Grip Diameter min-max 5 ÷ 45mm Gripping Torque 0.87 Nm Gripping Force 69 N Opening Time 0.03 s Closing Time 0.03 s Operating Temperature 5° ÷ 50°

Stroke : 9 mm - 60 mm
Grip strength: 270 N - 18,600 N

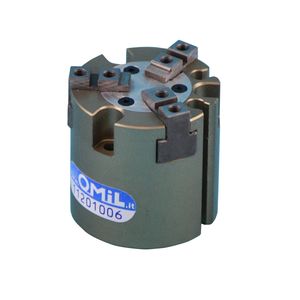

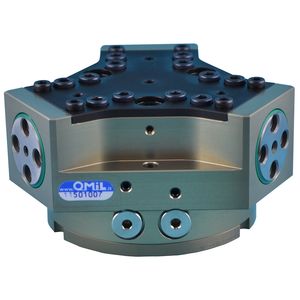

- operating pressure: 2...8 bar - repeatability accuracuy: from 0.02-0,05 absolute - operating temperature: from -10°C to 90°C, 130°C upon request - operating principle: wedge - hook kinematics - stroke range: from 6 to 60 mm - ...

Stroke : 4, 6 mm
Grip strength: 120, 75, 185 N

- operating pressure: 2...8 bar - repeatability accuracuy: from 0.02 absolute - operating temperature: from -10°C to 90°C, 130°C upon request - operating principle: wedge - hook kinematics - stroke range: from 4 to 6 mm - housing ...

Stroke : 8 mm - 32 mm
Grip strength: 420 N - 5,500 N

- operating pressure: 2...8 bar - repeatability accuracuy: from 0.02-0,05 absolute - operating temperature: from -10°C to 90°C, 130°C upon request - operating principle: wedge - hook kinematics - stroke range: from 8 to 32 mm - ...

The FKHS Series is a 3 Jaw Parallel Motion Pneumatic Gripper. The compact design makes these grippers ideal for handling small parts in tight spaces A magnetic ...

Stroke : 2.5 mm - 45 mm
Grip strength: 310 N - 72,500 N

... gripping force than the benchmark 10% more static forces and moments than the benchmark Gripper fingers up to 10% longer than the benchmark Gripper fingers weight up to 15% higher than the benchmark Sealed ...

Stroke : 1 mm - 12 mm
Grip strength: 30 N - 1,420 N

"The superior" Gripper jaws may be almost 100% longer in comparison to the benchmark The highest force and torque measurement enables flexible for maximum dynamics Best price/performance ratio ...

Grip strength: 24 N - 530 N

... flexible" Largest stroke in small installation space You can cover numerous application variants with just one gripper type Gripper jaws included in the delivery Reduces your ...

Stroke : 2 mm - 16 mm
Grip strength: 40 N - 200 N

... 24 three jaw parallel gripper is developed by AVM Automation. It is equipped with three concentric fingers double effect. In addition, the gripper is being offered in three sized for ...

Stroke : 6.1, 155 in
Grip strength: 15 N - 60 N

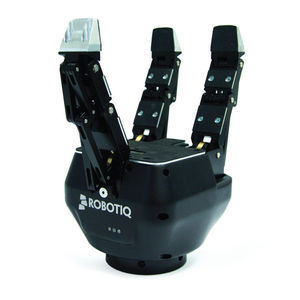

3-Finger Adaptive Robot Gripper Designed for applications dealing with a wide variety of parts, the 3-Finger Adaptive Robot Gripper represents a solution to improve ...

palletiser for bucket palletising default gripper for two buckets with lid under-gripper system with shut-keeping function approved and robust model

Stroke : 16 mm - 125 mm

... tri-fingered parallel style pneumatic grippers are structured with aluminum composition for the body and piston fitting, and steel components for their wedge and fingers. They operate in a double-acting function with ...

Stroke : 4 mm - 16 mm
Grip strength: 9.6 N - 1,330 N

The MHS is part of the rotary operated parallel style grippers. It features a compact design and it can be availed in varieties of 10 bore sizes, with the selection of 2, 3 and 4 fingers, which gives ...

Stroke : 8 mm - 32 mm

... Pneumatic 3-Jaw Grippers provide self-centering and maximum contact between part and jaw tooling. Large bore size enables a high grip force to weight ratio. The grippers ...

Grip strength: 1,000 N - 3,600 N

Large and flexible variable stroke Adjustable gripping stroke covers a wide variety of workpieces. Able to pick up varied shaped workpieces. Suitable for picking tightly packed parts. Useful Measuring Function Automatically detects size ...

The TJ Series grippers provide high grip force in a compact design. Shielded design make the TJ series ideal for machine loading and unloading. Compact design, to grip force ratio are ideal for confined work areas.

The 3-fingers Grippex is the most optimal design to pull round and hexagon bars. The three fingers are automatically centring the bar. Grippex 3-fingers bar puller comes with 2 different ...

Stroke : 16, 20, 28, 32, 50 mm

... cylinders are located on the side toward workpiece, and which makes the motion of the cylinders parallel to jaw. These changes reduces thickness of the gripper by a half for use in confined spaces. ■Simple ...

Grip strength: 5 N

Stroke : 175 mm
Grip strength: 40 N

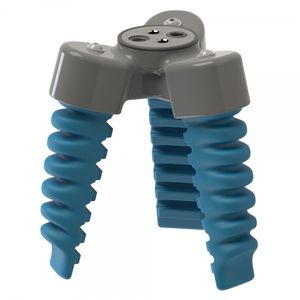

... manipulating the materials that will help you achieve success, you can trust the mechanically intelligent fingers of our grippers to adapt to the shape of any object, safely and carefully, without letting go.
