pneumatic gripper / parallel / 3-jaw / handling
QPGB

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

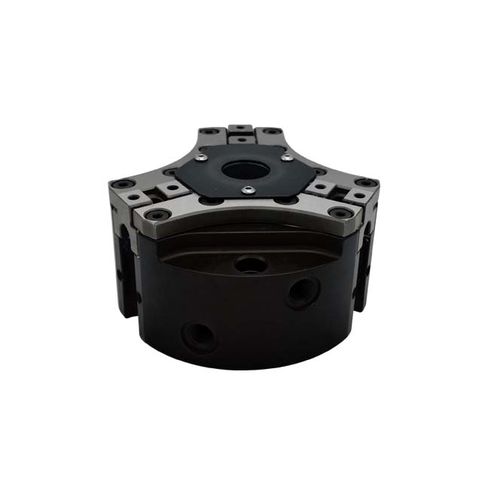

pneumatic gripper pneumatic gripper - QPGB
{{requestButtons}}

Characteristics

  • Operation:

    pneumatic

  • Type:

    parallel

  • Number of jaws:

    3-jaw

  • Application:

    handling

  • Options:

    lightweight, through-hole

  • Stroke :

    Max.: 10 mm (0.394 in)

    Min.: 3 mm (0.118 in)

Description

PNEUMATIC PARALLEL GRIPPERS
QPGB 3-FINGER
QPGB is a universal three-finger centric gripper, with a hollow center, featuring high reliability and a long service life, suitable for applications that require a center bore,(e.g. for workpiece feed, special sensor systems or optical recognition systems).

ADVANTAGES
Robust lightweight housing made of hard-coated aluminum alloy.
Sturdy T-slot with hardened steel gibs for effective jaw guidance, precise handling, and easy maintenance.
Central through-hole which can be used for feed through of supply hoses and utilities.
Mounting from one side in two screw directions for versatile and flexible integration.
Integrated permanent magnets for direct monitoring of piston movement.
Slots for mounting and positioning magnetic-field sensors.
Air supply via hose-free direct connections or fitting screw connections.
