Industrial robot gripper GRP series
pneumaticparallel2-jaw

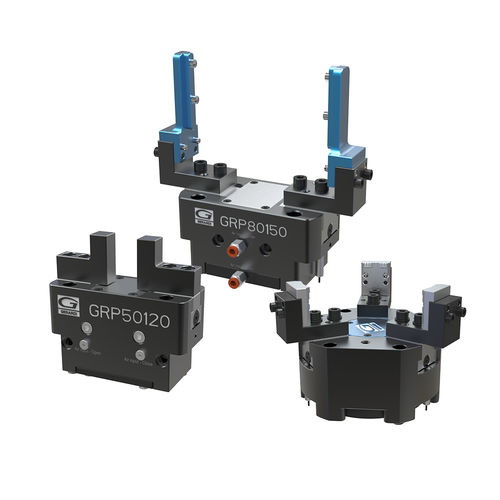

Industrial robot gripper - GRP series - GERARDI - pneumatic / parallel / 2-jaw

Industrial robot gripper - GRP series - GERARDI - pneumatic / parallel / 2-jaw - image - 2

Industrial robot gripper - GRP series - GERARDI - pneumatic / parallel / 2-jaw - image - 3

Industrial robot gripper - GRP series - GERARDI - pneumatic / parallel / 2-jaw - image - 4

Add to favorites

Compare this product

Go to the GERARDI website for more information

Characteristics

Operation

pneumatic

Type

parallel

Number of jaws

2-jaw, 3-jaw

Application

for industrial robots

Options

compact, modular, lightweight, precision, for collaborative robots

Grip strength

Min.: 610 N

Max.: 1,690 N

Stroke

20 mm, 32 mm
(0.787 in, 1.26 in)

Description

Very high quality standards and long-lasting warranty. Metal chips protection and less maintenance, high strength and maximum workpiece holding precision for a stable clamping of light and heavy workpieces. The optimized and innovative design with reduced overall dimensions and internal components grant higher reliability, easier mounting and less maintenance than conventional models already on the market. The high resistance aluminum body with hard anodizing treatment is light and compact and has a high resistance to wear. Custom made jaws are available. THE JAWS FOR GRIPPER Install the jaws using two mounting bolt holes, fitting portion, and positioning pin hole. The jaws and jaw fixing bolts are to be prepared by the customer.
